Cannondale LAB71 Moterra Neo: Breaking Barriers in the e-MTB World

Break the limits with Bosch's exclusive high quality assembly and most powerful motor. There is no higher performance e-MTB than the Cannondale LAB71 Moterra Neo.

Its Field:

• Technical trails
• Ups and downs
• Wilderness

Designed for:

• Usability
• Grip
• Efficiency
• Robustness

Main points:

• Carbon fiber frame with 150 mm of travel and Proportional Response geometry
• Unlimited performance with the fastest and most powerful Bosch CX Race motor and a huge 750Wh battery
• SRAM XX AXS wireless electronic drivetrain and SRAM Code Ultimate Stealth 4-piston brakes
• RockShox Lyrik Ultimate 150 mm suspension fork
• Zipp 3Zero Moto wheels with carbon rims
• RockShox Reverb wireless telescopic seatpost

Cannondale Lab71 Moterra Neo Specifications

FRAMESET

Frame: Lab71 Edition Full Carbon Front Triangle, SmartForm C1 Alloy Swingarm, 150mm travel, Proportional Response Tuned Suspension, removable downtube battery, alloy skid plate, 55mm chainline, internal cable routing, 148x12mm thru-axle, UDH hanger, post mount brake, 1.5” – 1.8” tapered headtube, 18mm two-bolt kickstand mount.

Fork: RockShox Lyrik Ultimate, Charger 3, 150mm, DebonAir, 15x110mm thru-axle, tapered steered, 42mm offset.

Headset: Acros, integrated, 1-1/8 to 1.8", sealed bearings.

Rear Shock: RockShox Deluxe Select +, DebonAir, 2-Pos mode adjust, adjustable rebound.

ELECTRIC SYSTEM

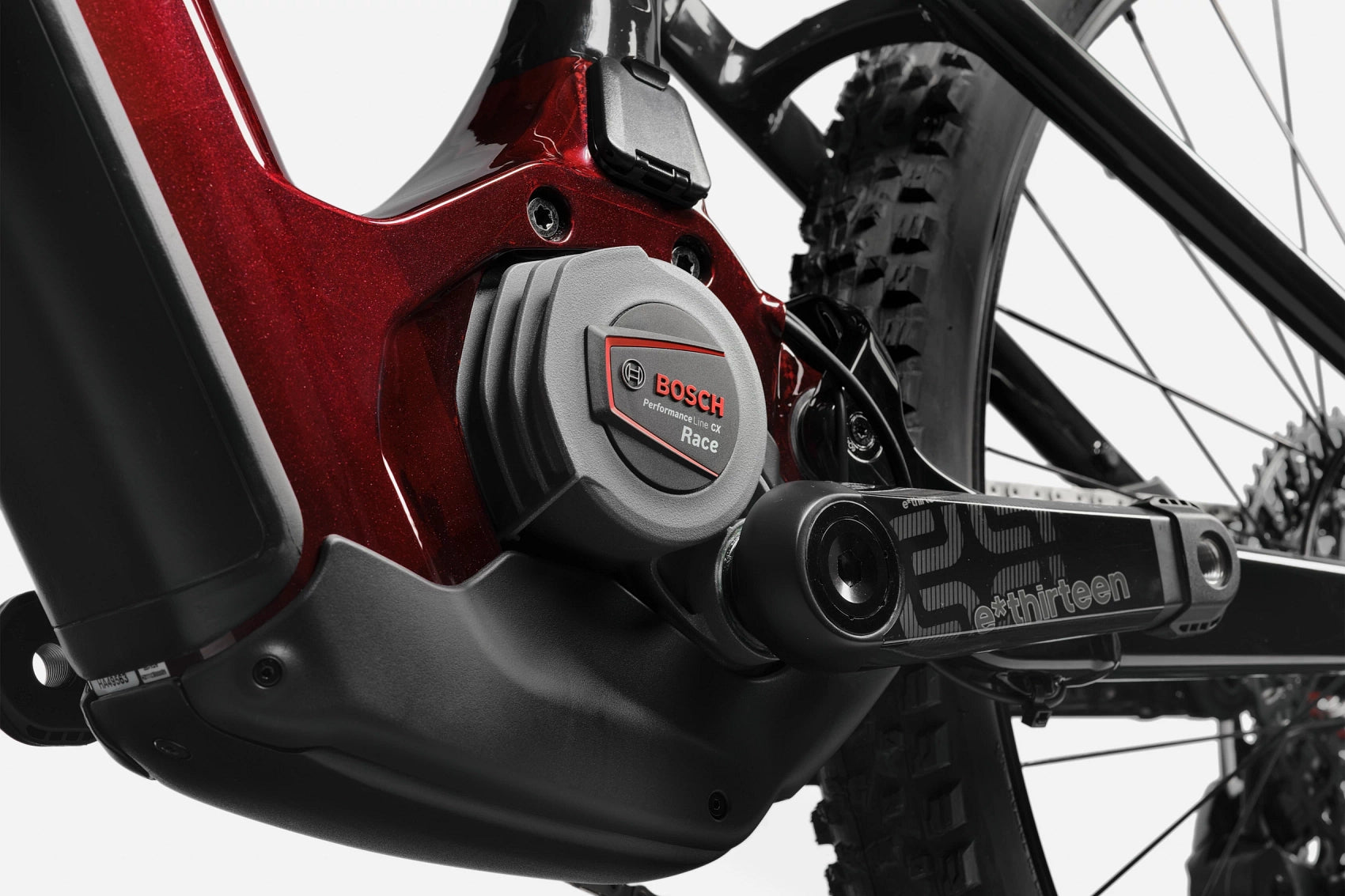

Drive Unit: Bosch Performance Line CX Race.

Battery: Bosch PowerTube, 750 Wh.

Charger: Bosch 4A.

Display: Bosch Kiox 300 w/ LED remote.

DRIVETRAIN

Derailleur: SRAM XX Eagle AXS T-Type.

Shifters: SRAM AXS T-Type Ultimate Pod Controller.

Chain: SRAM XX Eagle T-Type, Flattop.

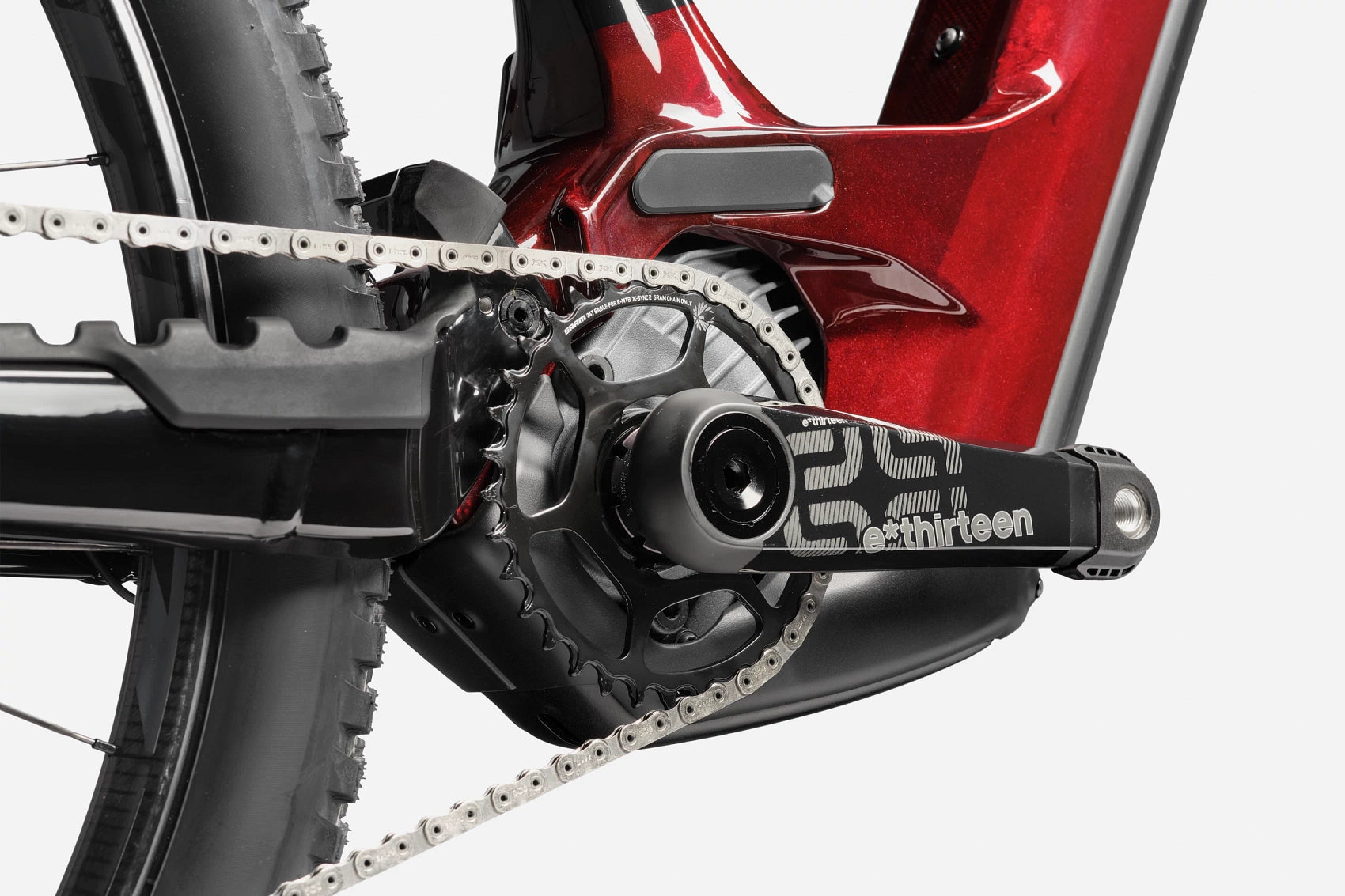

Crankset: ETHIRTEEN ESpec Race Carbon, 160 mm, 34T.

Cassette: SRAM XX Eagle T-Type, 10-52, 12 speed.

BRAKES

Brakes: SRAM Code Ultimate Stealth 4-piston hydraulic disc, 220/200mm rotors.

Brake Levers: SRAM Code Ultimate Stealth hydraulic disc, carbon levers.

WHEELS

Rims: Zipp 3Zero Moto, carbon, 32h, 30mm inner width, 37.5mm outer width, 29" (27.5 rear, size small).

Hubs: (F) Zipp ZM2, 15x110mm thru-axle | (R) Zipp ZM2, 12x148mm thru-axle.

Tires: (F) Maxxis Minion DHF, 29x2.6", EXO, tubeless ready | (R) Maxxis Rekon, 29x2.6", (size Small - 27.5x2.6") EXO, tubeless ready

COMPONENTS

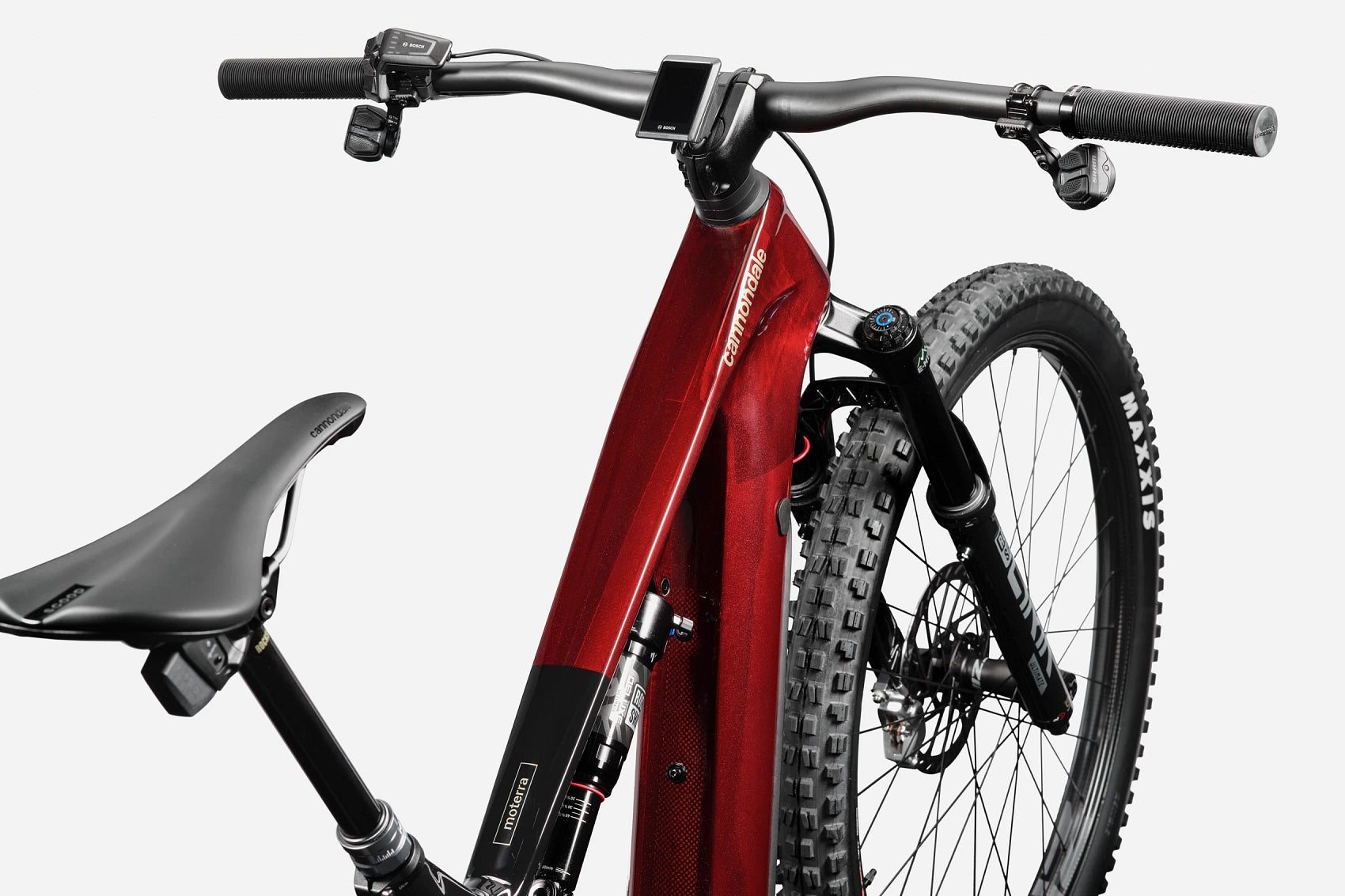

Handlebar: HollowGram SAVE riser bar, Carbon, 35mm clamp, 30mm rise, 8° sweep, 5° rise, 780mm.

Stem: Cannondale, 3D Forged 6061 Alloy, 1-1/8", 35.0, internal cables.

Grips: Cannondale TaperRidge.

Saddle: Cannondale Scoop Shallow Race, Ti rails.

Seat Post: SRAM Reverb AXS, 31.6, 125mm (S), 150mm (M), 170mm (L-XL).

EXTRA

Extras: SuperNova Mini 2 Pro STVZO w/ remote high beam switch, Zipp tubeless valve stems, SRAM AXS charger.

* We reserve the right to modify the information and components of the products appearing on this website without prior notice, including equipment, specifications, models, colors and materials.

The Cannondale LAB71 Moterra Neo challenges limits and delivers exceptional performance on technical and demanding terrain. With its state-of-the-art Bosch motor and high-end components, it is the ultimate choice for e-MTB enthusiasts looking for maximum power and efficiency.
