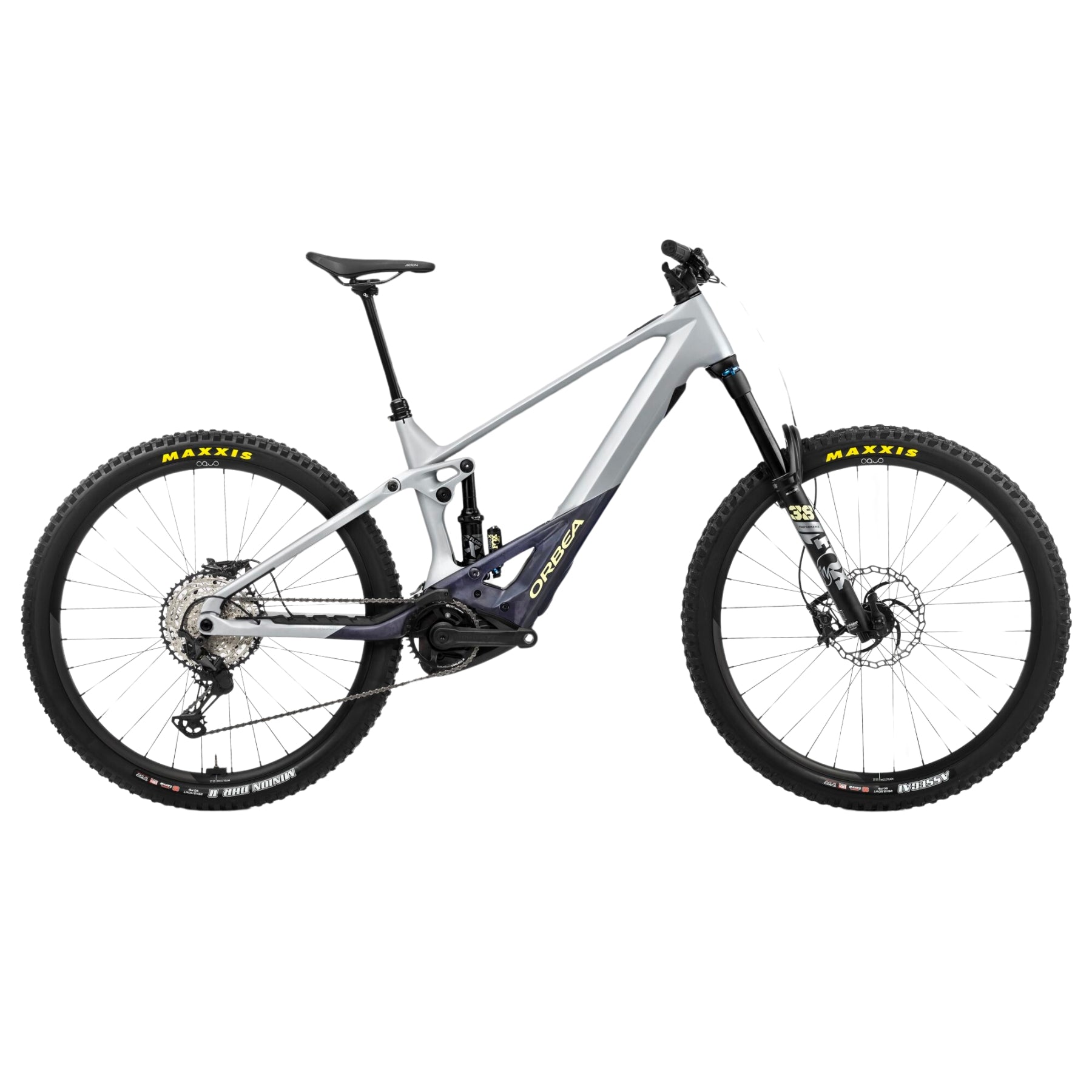

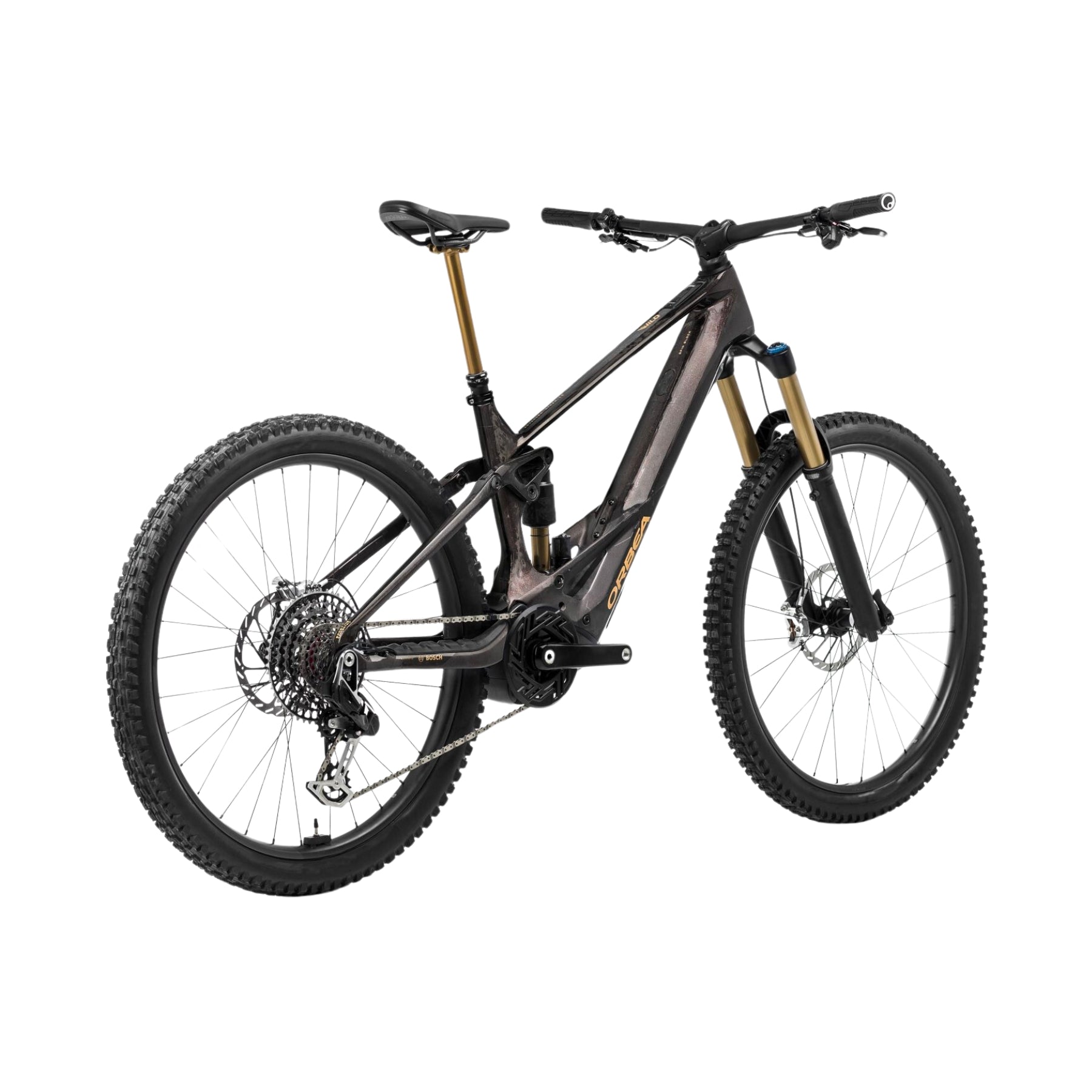

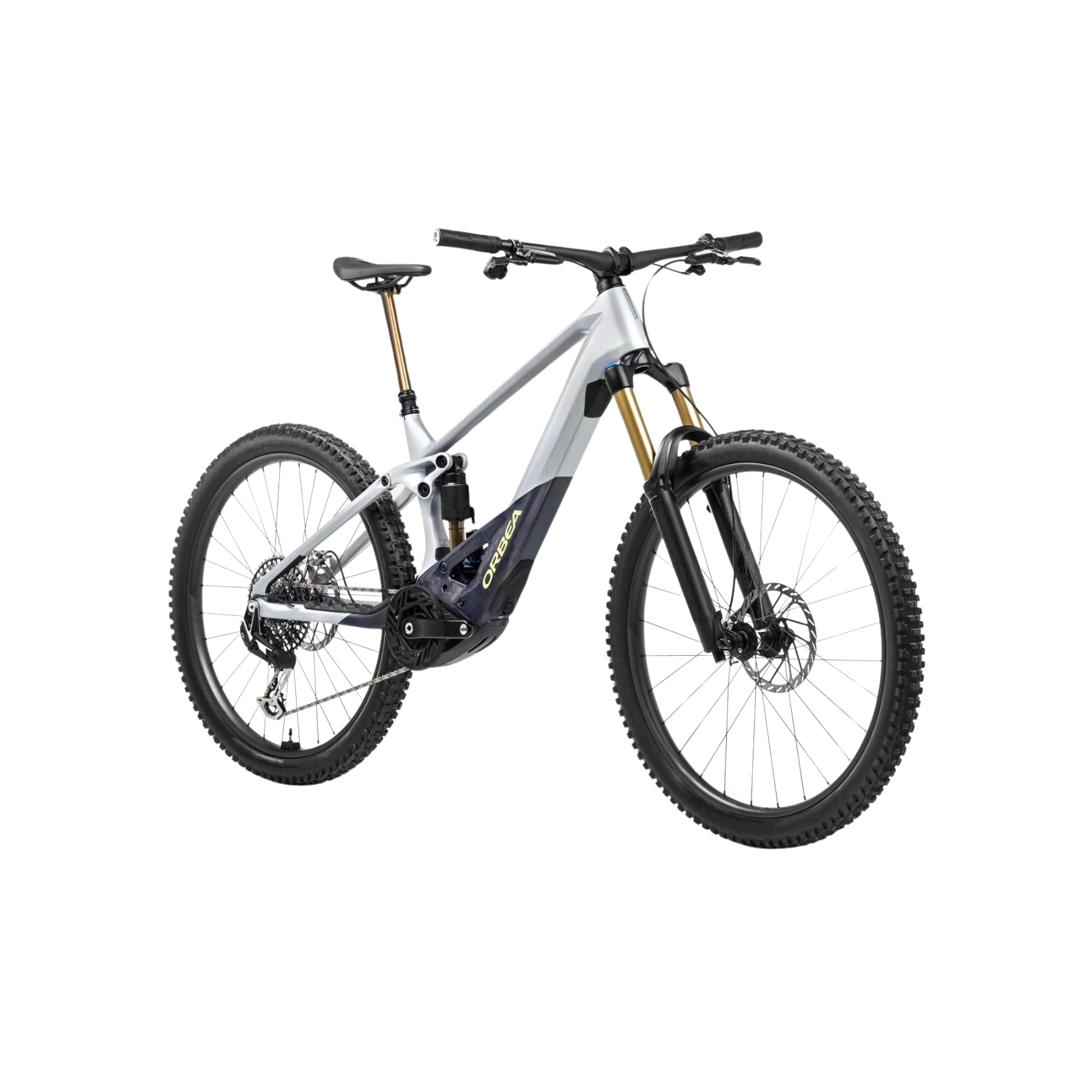

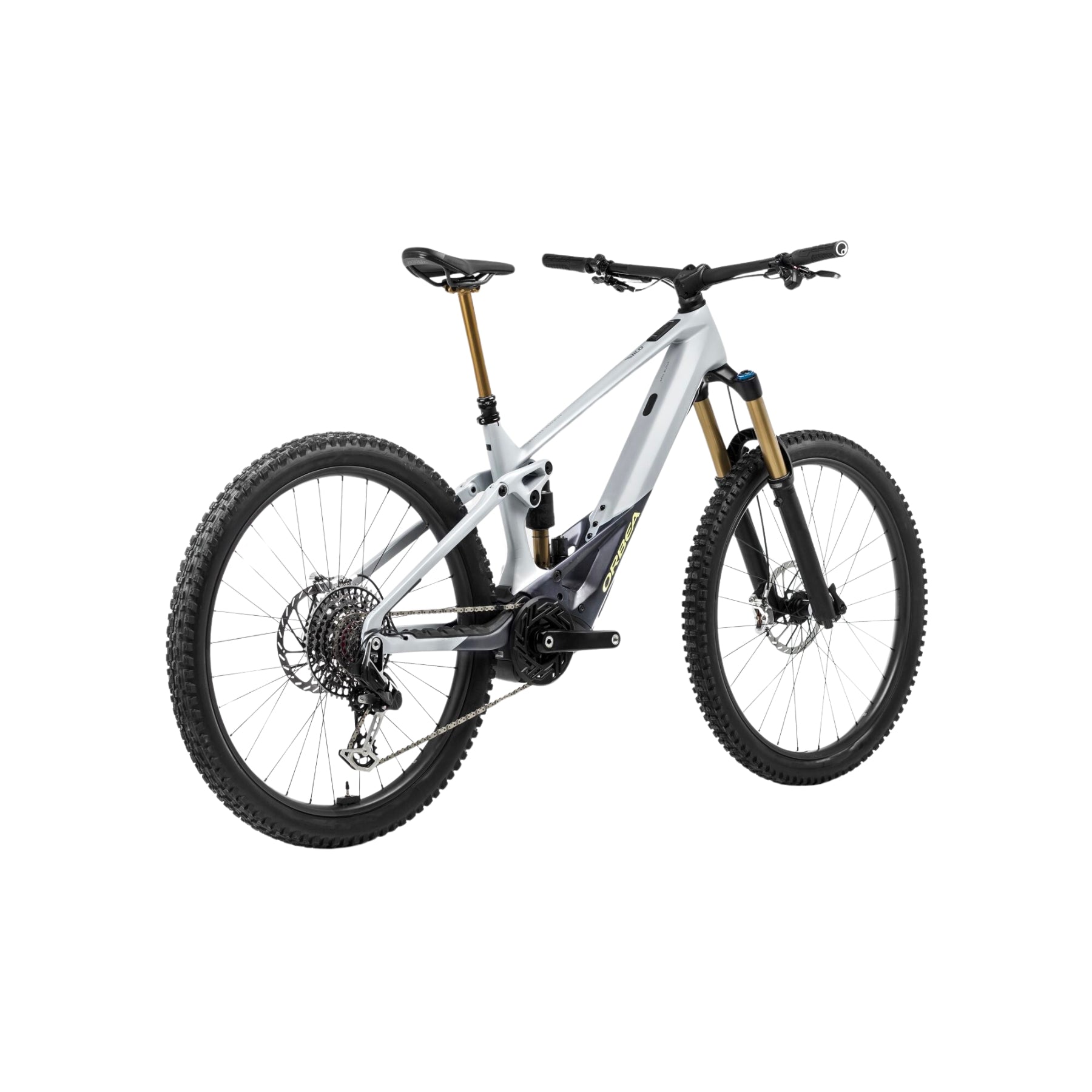

Orbea Wild M10 2024 MTB eBike

Orbea Wild M10 2024 e-bike: Maximum performance, maximum fun

Wild was created to dominate the wildest trails; a machine that will make you feel more alive and energized than any other e-bike in its class. Wild is, first and foremost, an extraordinary Enduro bike, as evidenced by its stiff frame, lightweight, reactive suspension and e-bike specific geometry that will give you total control over your riding.

The new Orbea Wild M10 2024 ebike is equipped with an OMR carbon frame designed under a comfortable geometry to not give up any climb or descent no matter how technical it is.

The large steering angle, longer wheelbase and lower bottom bracket height contribute to excellent capacity and stability. The Bosch Performance Line CX motor and 750Wh Powertube battery provide guaranteed assistance to help you in the most difficult moments of your route. It also features the powerful Fox 38 Float 160mm fork, Fox Float X Performance Trunnion shock and Shimano XT M8100 rear derailleur for a set that's ready for any adventure.

Orbea Wild M10 Specifications

FRAMESET

Frame: Orbea Wild OMR 2023, 160mm travel, 29" wheels, Concentric Boost 12x148

Fork: Fox 38 Float Performance 160 Grip 3-Position QR15x110 E-Bike Optimized.

Headset: Alloy 1-1/2", Black Oxidated Bearing.

Rear Shock: Fox Float X Performance Trunnion 2-Position Adjust custom tune 205x65mm.

ELECTRIC SYSTEM

Drive Unit: Bosch Performance Line CX BDU3741

Battery: Bosch Powertube 750Wh Horizontal BBP3770

Charger: Bosch Charger 4A (230V) BPC3400

Display: Bosch System Controller BCR3100

UI/Remoto: Bosch Mini Remote BRC3300

DRIVETRAIN

Derailleur: Shimano XT M8100 SGS Shadow Plus

Shifters: Shimano SLX M7100 I-Spec EV.

Chain: Shimano M6100.

Crankset: e*thirteen Plus Alloy, e*thirteen e*spec Direct Mount 34T Boost.

Cassette: Shimano CS-M7100 10-51t 12-Speed.

BRAKES

Brakes: Shimano XT M8120 Hydraulic Disc.

WHEELS

Rims: Oquo Mountain Control MC32TEAM POWER.

Tires: (F) Maxxis Minion DHR II 2.40" WT FB 120 TPI 3C MaxxTerra Exo+ TR | (R) Maxxis Assegai 2.50" WT FB 120 TPI 3C MaxxTerra EXO+ TR.

COMPONENTS

Handlebar: OC Mountain Control MC20 Alu SL, Rise20, Width 800.

Stem: OC Mountain Control MC20, 0º

Grips: OC Lock On.

Saddle: Fizik Aidon 208x145mm manganese rail.

Seat Post: OC Mountain Control MC21, 31.6mm, Dropper

Remote Seat Post: Shimano SL-MT500 I-Spec EV

* We reserve the right to modify the information and components of the products appearing on this website without prior notice, including equipment, specifications, models, colors and materials.
