Cannondale Moterra Neo 4 MTB eBike

Cannondale Moterra Neo 4 Electric MTB: Where Power and Mountain Passion Meet

The Cannondale Moterra Neo 4 is the e-mountain bike that redefines mountain performance. Designed for maximum fun on the trails, this dual-suspension bike comes loaded with all the electric all-mountain technology you need. Want to take on vertical descents and technical climbs? This monster of pure metal power is waiting for you.

Frame and Suspension: The Soul of Adventure

With its premium SmartForm C2 aluminum frame and RockShox 35 Silver R fork with 150mm of travel, the Moterra Neo 4 is all you need to conquer the most demanding terrain.

Electrical System: Unlimited Power

Its Shimano EP8 motor system and 630Wh battery give you the power and range to explore the mountains for hours. Plus, the Shimano SC-EM800 Bluetooth display makes it easy to adjust and monitor your ride.

Transmission and Brakes: Total Control in your Hands

SRAM NX/SX Eagle 12-speed transmission and TRP Slate 4-piston disc brakes offer precise and reliable control, both on descents and ascents.

Cannondale Moterra Neo 4 Specifications

FRAMESET

Frame: 150mm travel, SmartForm C2 Alloy, Cannondale Tuned Suspension, removable downtube battery, internal cable routing, 148x12mm thru-axle, post mount brake, tapered headtube.

Fork: RockShox 35 Silver R, 150mm, Solo Air, 15x110mm stealth thru-axle, tapered steerer, 51mm offset.

Headset: Integrated Sealed Bearing, Tapered.

Rear Shock: RockShox Deluxe Select R, DebonAir

ELECTRIC SISTEM

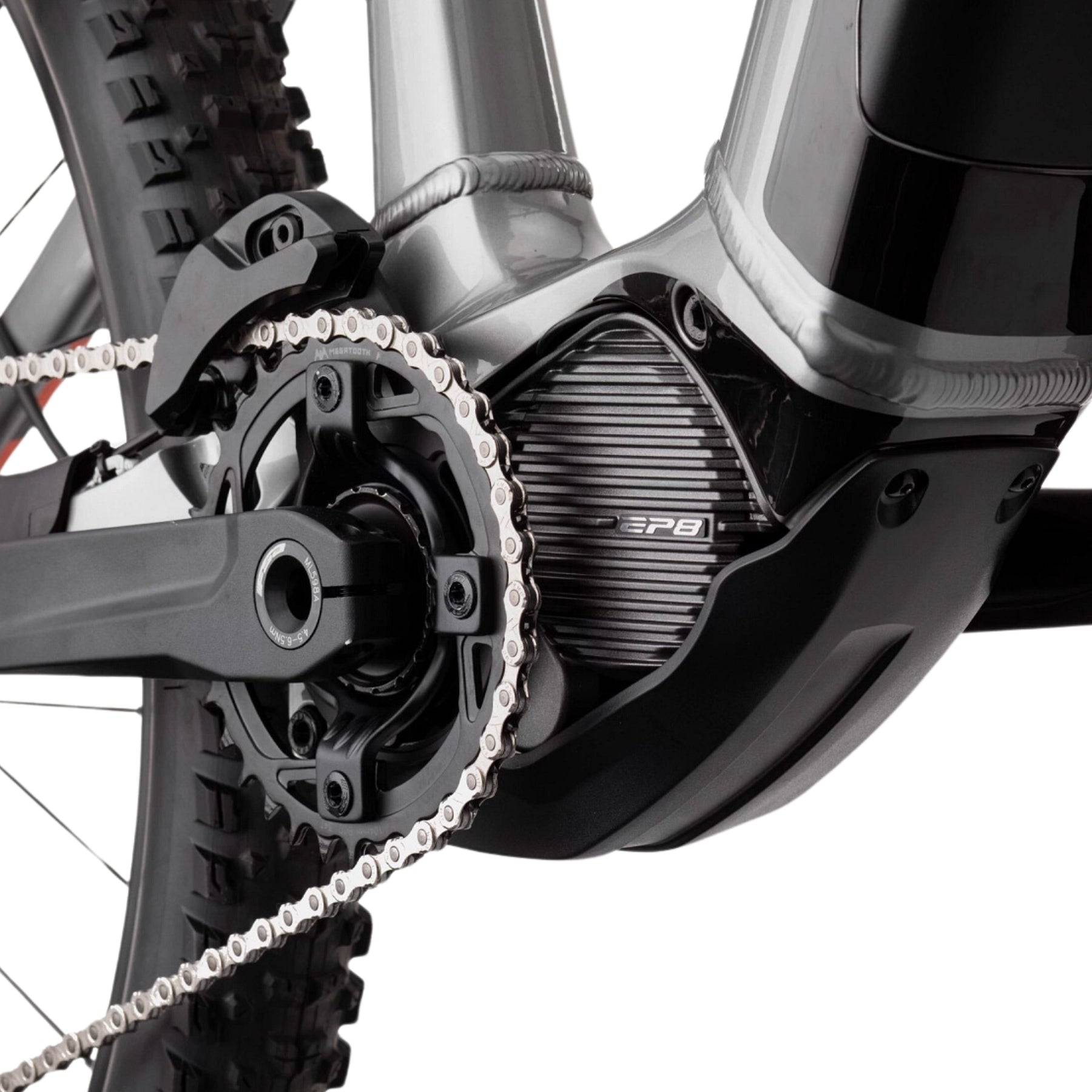

Drive Unit: Shimano EP8

Battery: Shimano BT-E8036, 630Wh

Charger: Shimano Battery Charger 2A

Display: Shimano SC-EM800, Bluetooth enabled

DRIVETRAIN

Derailleur: SRAM SX Eagle

Shifters: SRAM NX Eagle, 12-speed

Chain: SRAM SX Eagle, 12-speed

Crankset: FSA E-Bike, 165mm, SRAM Eagle, 34T Steel

Cassette: SRAM PG-1210, SX Eagle, 11-50, 12-speed

BRAKES

Brakes: TRP Slate G4 4 Piston hydraulic disc, 200/200mm rotors.

Brake Levers: TRP hydraulic disc

WHEELS

Rims: WTB STX i25 TCS, 32h, tubeless ready.

Hubs: (F) Shimano MT400, 15x110mm thru-axle | (R) Shimano MT400, 12x148mm thru-axle.

Tires: Maxxis Rekon, 29 x 2.6", 60TPI Exo.

COMPONENTS

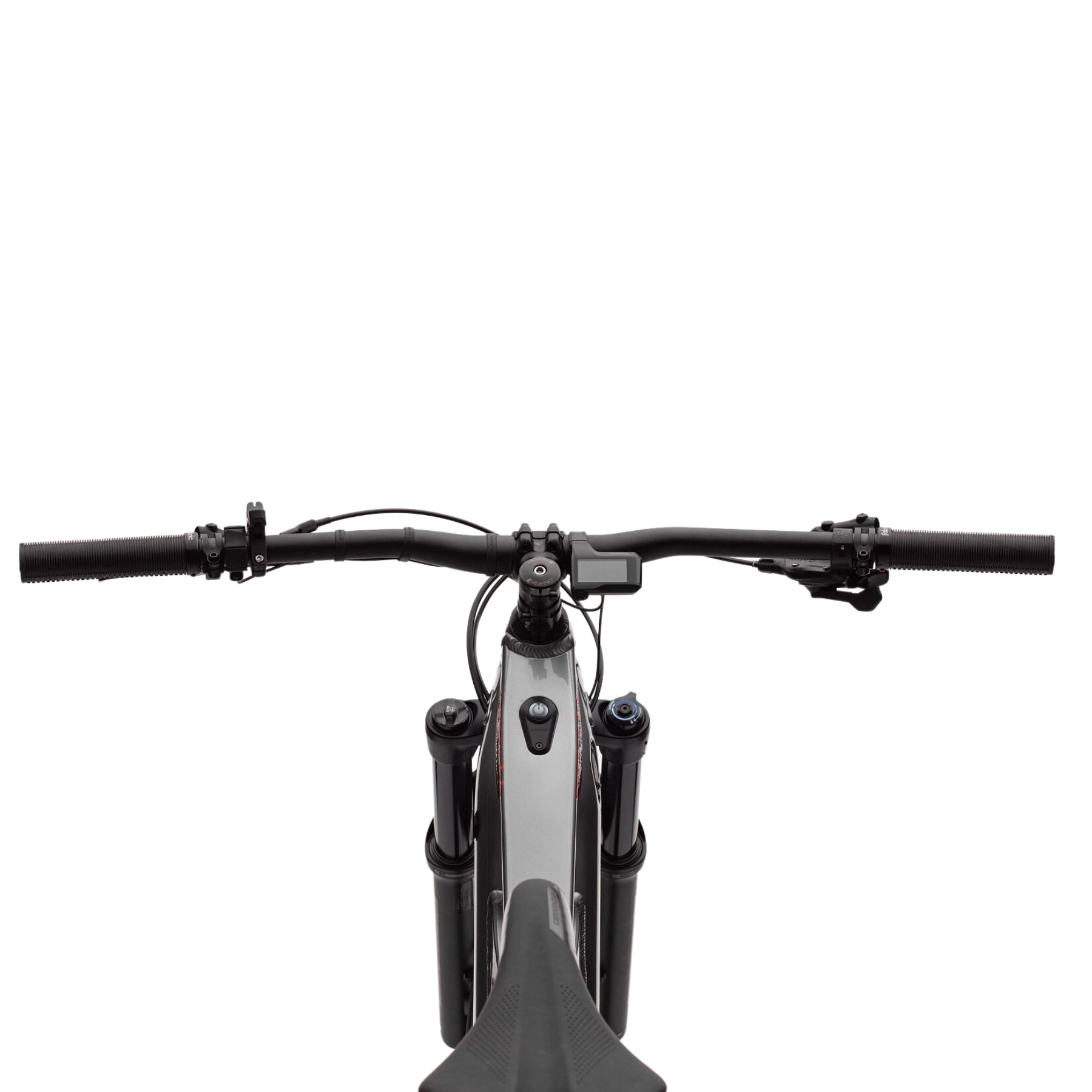

Handlebar: Cannondale 3 Riser, 6061 Alloy, 15mm rise, 8° sweep, 4° rise, 780mm.

Stem: Cannondale 3, 3D Forged 6061 Alloy, 1-1/8", 31.8, 7°.

Grips: Fabric Funguy.

Saddle: Cannondale Ergo XC.

Seat Post: TranzX dropper, internal routing, 31.6, 120mm (S-M), 130mm (L-XL).

* We reserve the right to modify the information and components of the products appearing on this website without prior notice, including equipment, specifications, models, colors and materials.
