Cannondale Moterra Neo Carbon 2 2023 MTB eBike

Cannondale Moterra Neo Carbon 2: The Legend of E-Mountain Bikes Continued

Dive into adventure with the Cannondale Moterra Neo Carbon 2. Designed to challenge the boundaries of mountain biking, this high-performance e-bike will take you over technical trails, steep climbs and thrilling descents with breathtaking ease.

Frame and Suspension: Balance of Power and Accuracy

Featuring a Proportional Response Tuned carbon fiber frame with 160 mm of travel and a new 160 mm RockShox Zeb Select fork, this bike is built to give you maximum performance and control over challenging terrain.

Electrical System: State-of-the-Art Motorization

The heart of this beast is a Bosch Performance Line CX 250W motor accompanied by a 750Wh battery. With a range of up to 108 km, the Moterra Neo Carbon 2 lets you explore more and stop less. Plus, its Bosch Purion display gives you quick and easy control at your fingertips.

Transmission and Brakes: Power and Safety

With a new SRAM GX/NX Eagle 12-speed transmission and Magura MT5 4-piston brakes, the Moterra Neo Carbon 2 is ready to give you all the speed and safety you need to take on any challenge.

Cannondale Moterra Neo Carbon 2 Specifications

FRAMESET

Frame: Moterra Carbon Front Triangle, SmartForm C1 Alloy Swingarm, 150mm travel, Proportional Response Tuned Suspension, removable downtube battery, alloy skid plate, 55mm chainline, internal cable routing, 148x12mm thru-axle, UDH hanger, post mount brake, 1.5- 1.8 tapered headtube, 18mm two-bolt kickstand mount.

Fork: RockShox Lyrik Select, 150mm, DebonAir, 15x110mm thru-axle, tapered steered, 44mm offset.

Rear Shock: RockShox Deluxe Select+, DebonAir, 2-Pos mode adjust, adjustable rebound.

ELECTRIC SYSTEM

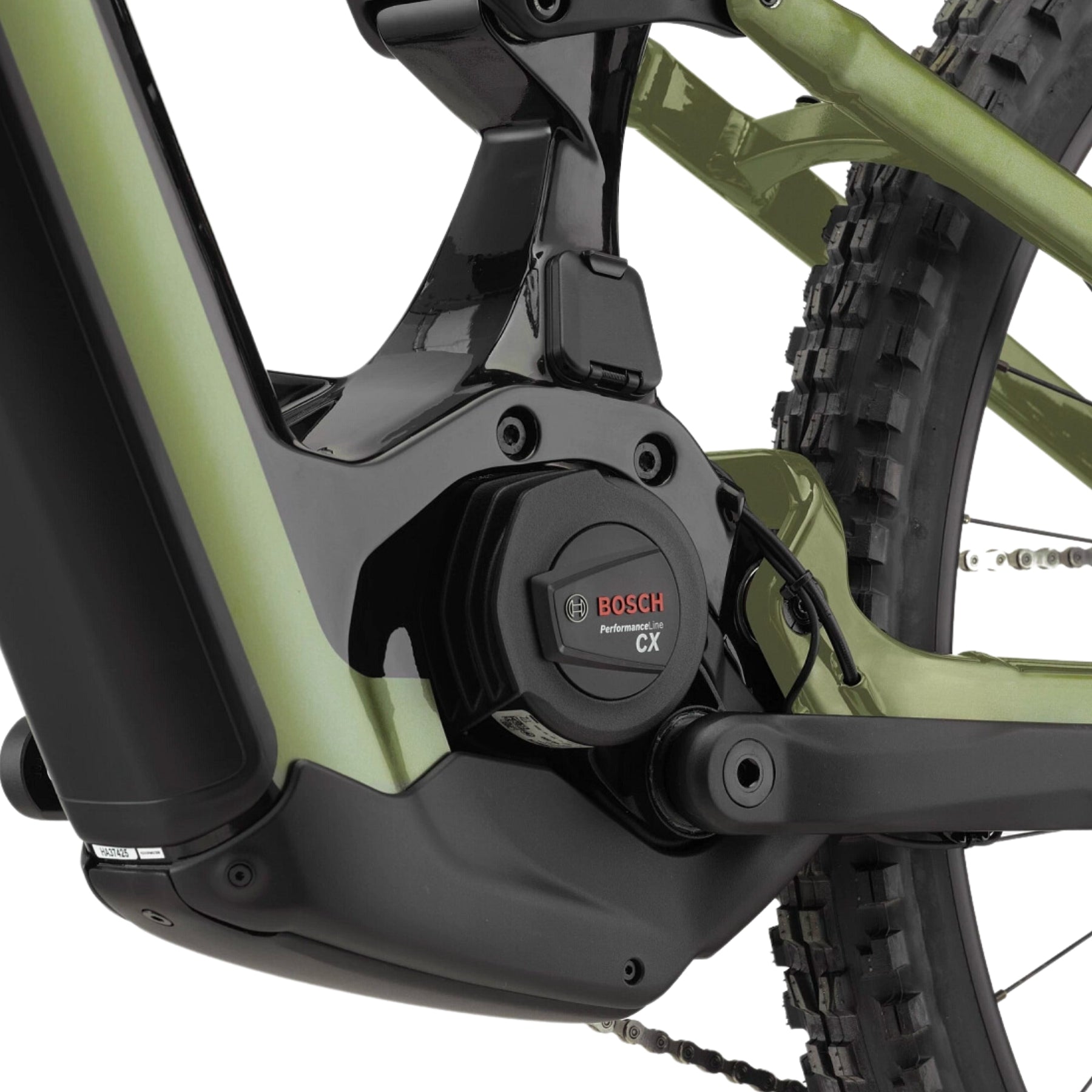

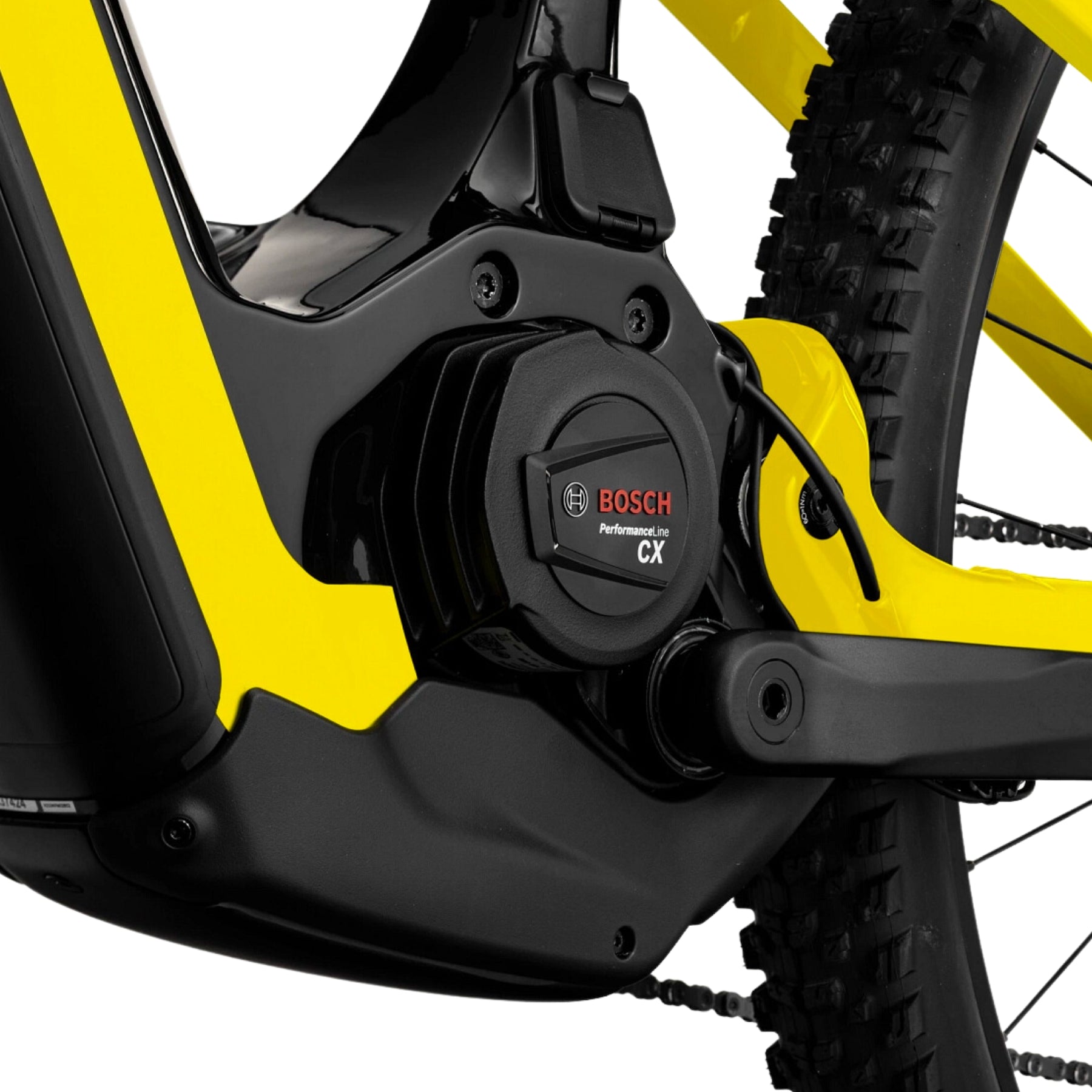

Drive Unit: Bosch Performance Line CX 250W

Battery: Bosch PowerTube, 750Wh

Charger: Bosch 4A

Display: Bosch Purion

DRIVETRAIN

Derailleur: SRAM GX Eagle

Shifters: SRAM NX Eagle, single click, 12-speed

Chain: SRAM NX Eagle, 12-speed

Crankset: FSA Bosch E-bike w/ custom Ai offset, 160mm, 34T

Cassette: SRAM XG-1275 Eagle, 10-52, 12-speed

BRAKES

Brakes: Shimano MT520 4-piston hydraulic disc, 203/203mm RT64 rotors.

Brake Levers: Magura MT5 Trail HC hydraulic disc

WHEELS

Rims: WTB ST i30 TCS, 32h, tubeless ready.

Hubs: (F) Formula 15x110mm thru-axle | (R) Shimano MT410, 12x148mm thru-axle

Tires: (F) Maxxis Minion DHF, 29 x 2.6", EXO, tubeless ready | (R) Maxxis Rekon, 29 x 2.6" (27.5x2.6" - size Small), EXO, tubeless ready

COMPONENTS

Handlebar: Cannondale 3 Riser, 6061 Alloy, 25mm rise, 8° sweep, 5° rise, 800mm.

Stem: Cannondale 2, 6061 Alloy, 35mm, 0°.

Grips: Fabric FunGuy.

Saddle: Fabric Scoop Shallow Sport, steel rails.

Seat Post: Cannondale DownLow Dropper, internal routing, 31.6, 125mm (S), 150mm (M), 170mm (L-XL).

* We reserve the right to modify the information and components of the products appearing on this website without prior notice, including equipment, specifications, models, colors and materials.
