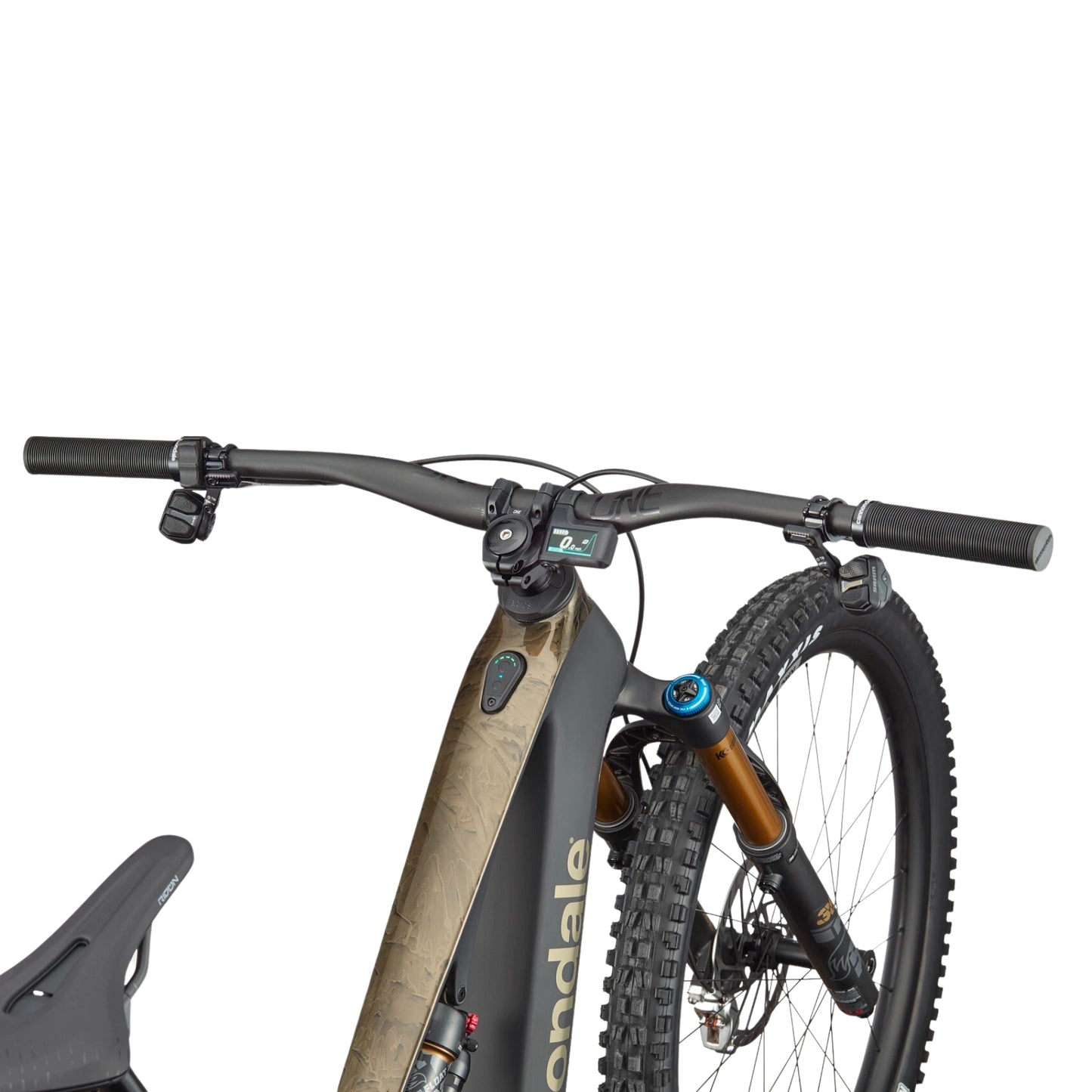

Cannondale Moterra Neo SL Lab71 MTB eBike

Cannondale Moterra Neo SL Lab71 eBike: Conquer every trail

An eMTB to rule them all. Built to conquer every trail, it features the top-of-the-line Fox Factory 36 fork and shock, the outstanding DT Swiss XMC 1501 carbon wheels, Reverb AXS wireless telescopic seatpost, the smooth shifting of the SRAM XX wireless groupset and the ultra-lightweight OneUp handlebar and stem. The Moterra LAB71 is simply the ultimate electric trail bike.

The Cannondale Moterra SL is the first 150mm travel trail bike to pack 85Nm of torque, over 600W of sustained power and 601Wh of range into a bike weighing just 19.5kg. Maximum power combined with lightness and agility: unique in its class. *eMTB with a motor of at least 85Nm and a battery capacity of at least 600Wh.

Fast, fluid and tremendous fun on trails, from the steepest and most technical to the fastest and most vertiginous.

LAB71, full carbon with FlexPivot system and 150mm of travel, with suspension kinematics and Proportional Response geometry optimized for each size.

Top-of-the-line Fox Factory suspension - 160mm travel Fox 36 Factory fork and Float X Factory shock absorber.

Ultra-light and robust DT Swiss XMC 1501 Carbon all-mountain wheels, with tubeless-ready rim.

Top-of-the-line SRAM group - XX AXS 12-speed wireless electronic XX AXS drivetrain with Code Ultimate Stealth 4-piston brakes and carbon e*thirteen Race crankset.

Reverb AXS wireless telescopic, OneUp stem and Ebar carbon handlebars.

Shimano EP801 motor customized for Cannondale, and 601Wh high energy density internal battery.

Cannondale Moterra Neo SL Lab71 Specifications

FRAMESET

Frame: LAB71 Moterra SL, Series 1 Carbon construction, 150mm travel, Proportional Response Tuned Suspension, FlexPivot Chainstay, direct mount internal battery, engineered plastic skid plate, 55mm chainline, DirectLine internal cable routing, 29” FlipChip, 148x12mm Maxle thru-axle, UDH hanger, 200mm native post mount brake, tapered headtube, angle adjust headset.

Fork: Fox Float Factory 36, 160mm travel, Grip2 Damper, Kashima coating, 15x110mm Kabolt thru-axle, tapered steerer, 44mm offset.

Headset: Acros Adjustable Angle (1.2°).

Rear Shock: Fox Float X Factory, 2 pos adj, EVOL LV, 210x55mm.

ELECTRIC SYSTEM

Drive Unit: Shimano EP801, 85Nm, Custom Tuned, Eco, Trail 1, Trail 2, Boost Modes.

Battery: Custom 601Wh battery.

Charger: Custom 4A.

Display: Shimano SC-EM800 Cycle Computer, Bluetooth LE Compatible.

DRIVETRAIN

Derailleur: SRAM XX Eagle AXS, T-Type.

Chain: SRAM XX, T-Type Flattop.

Crankset: e*thirteen e*spec Race Carbon - Gen 4, 165mm, 34T.

Cassette: SRAM XX, T-Type, 10-52, 12-speed.

BRAKES

Brakes: SRAM Code Ultimate Stealth, 200mm HS2 rotors.

Brake Levers: SRAM Code Ultimate Stealth.

WHEELS

Rims: DT Swiss XMC 1501, carbon, 30mm inner width, hookless, TSS tubeless ready.

Hubs: (F) DT Swiss 240, 15x110mm | (R) DT Swiss 240 Ratchet EXP 36, 12x148mm.

Tires: (F) Maxxis DHF, 29x2.5 ", 3C, EXO+, tubeless ready | (R) Maxxis Dissector , 27.5x2.4", 3C, EXO+, tubeless ready.

COMPONENTS

Handlebar: OneUp Carbon Ebar, 35mm clamp, 35mm Rise, 8° sweep, 5° rise, 780mm.

Stem: OneUp Stem, 6061 Alloy, 1-1/8", 35mm, 0°.

Grips: Cannondale TaperRidge

Saddle: Fizik Terra Ridon X1, 145mm, Wingflex, Carbon Mobius rail 7x10mm

Seat Post: RockShox Reverb AXS, 31.6, 150mm (S), 170mm (M-XL).

* We reserve the right to modify the information and components of the products appearing on this website without prior notice, including equipment, specifications, models, colors and materials.
