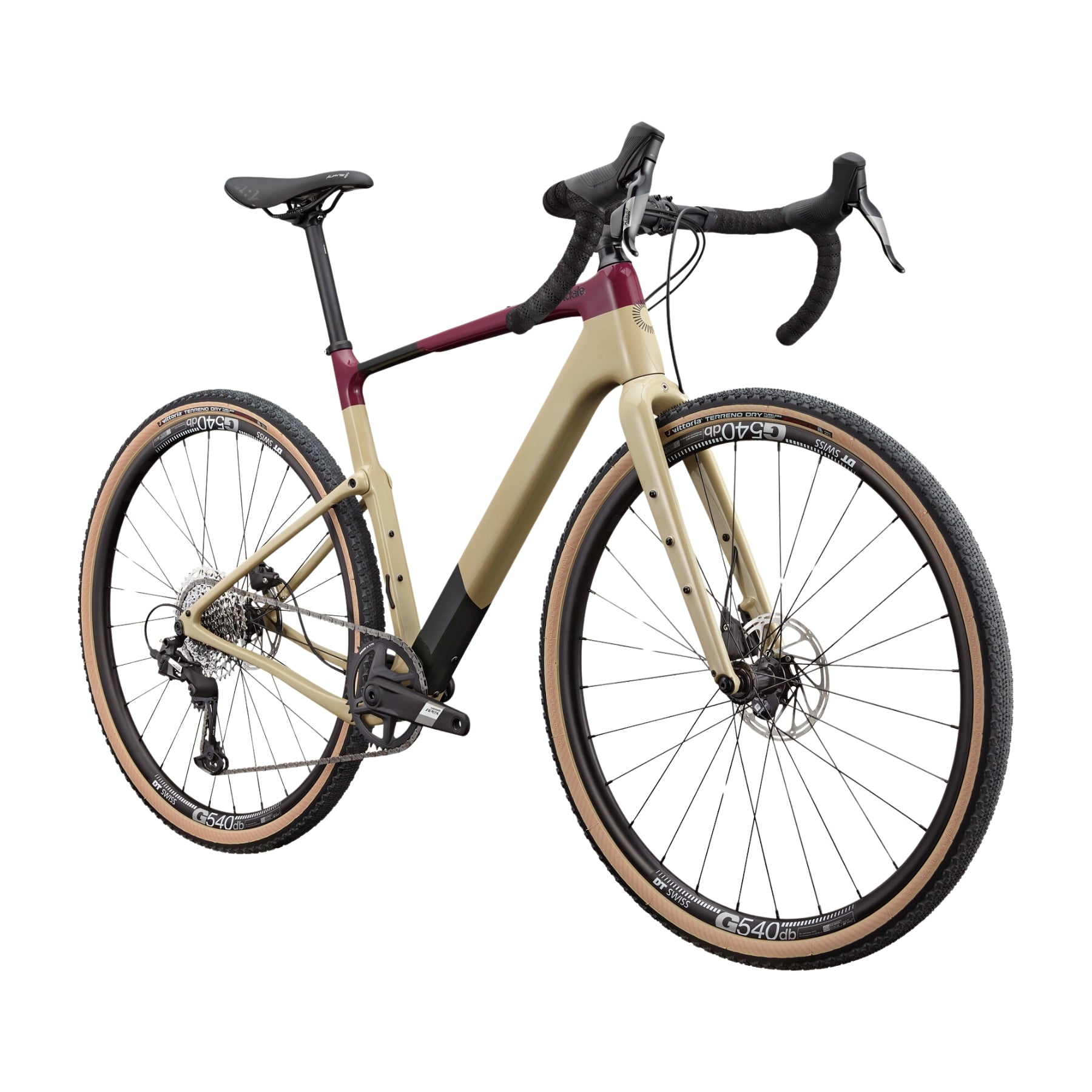

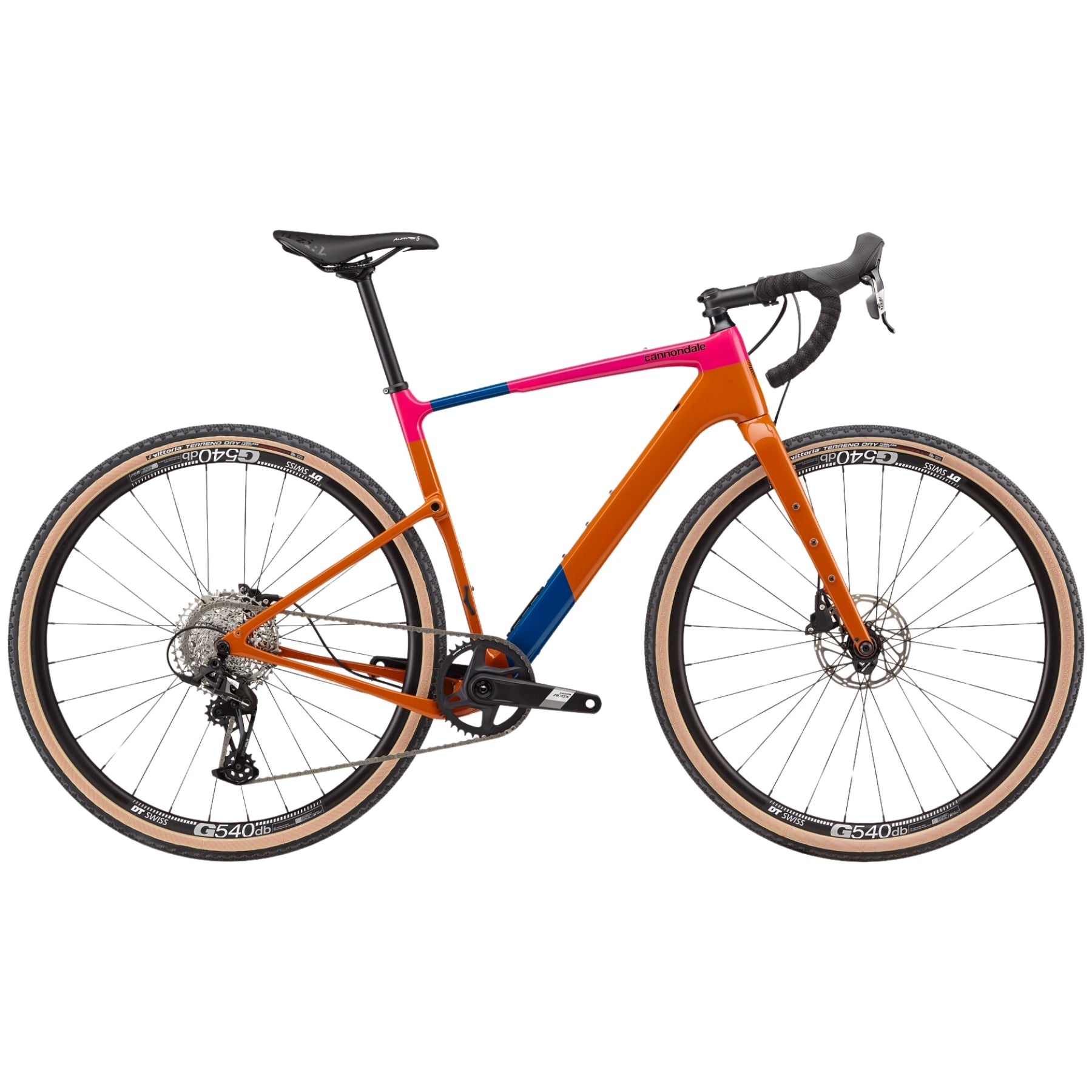

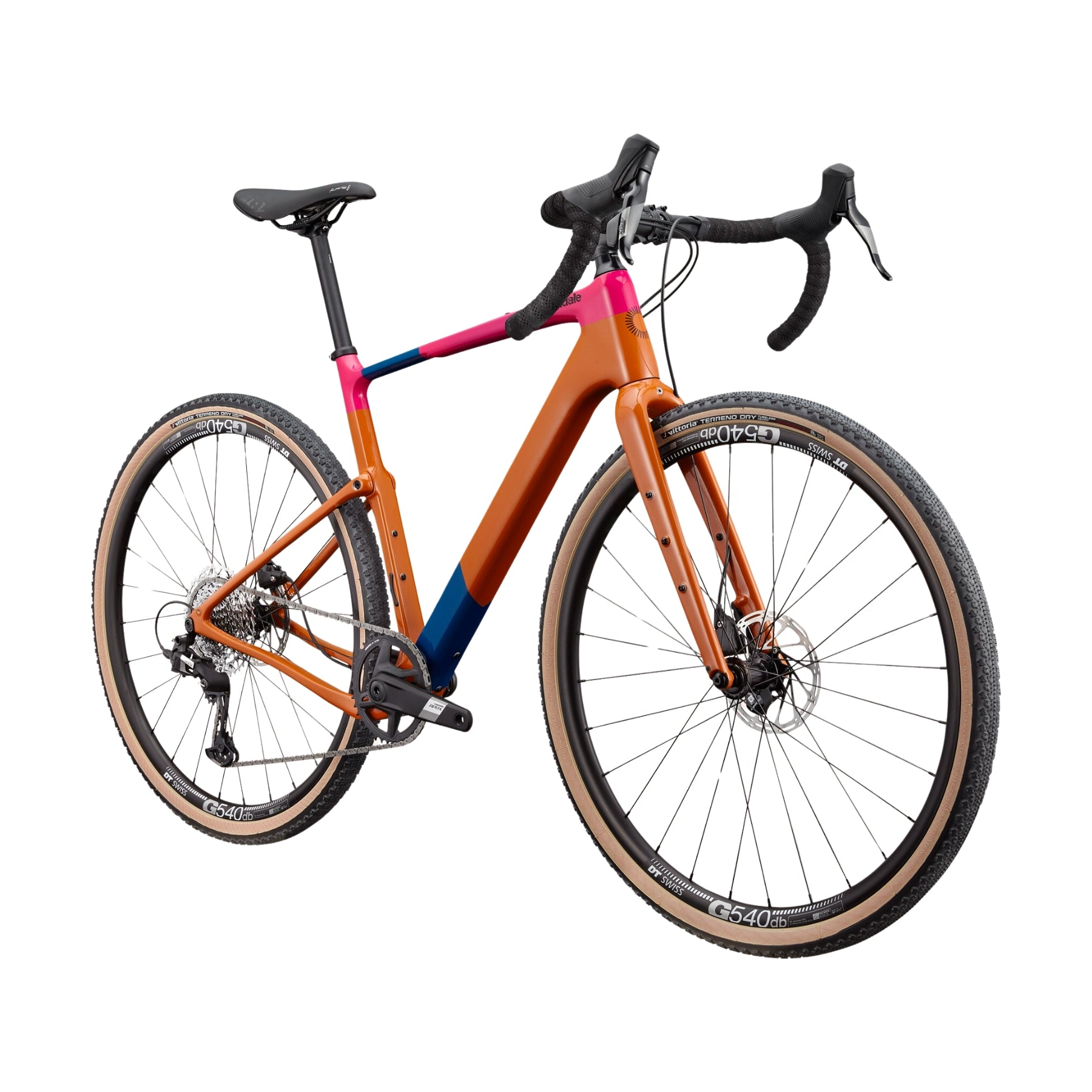

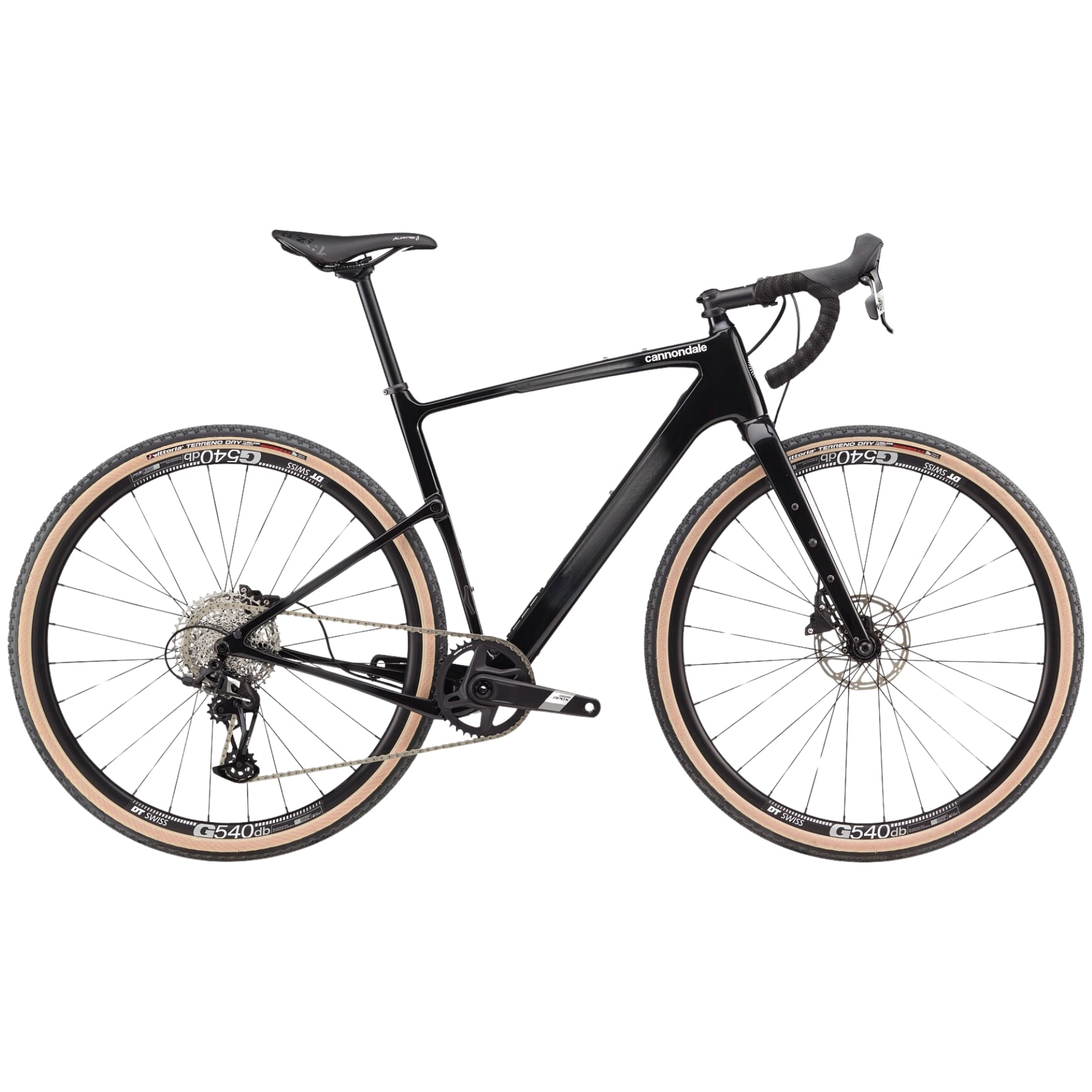

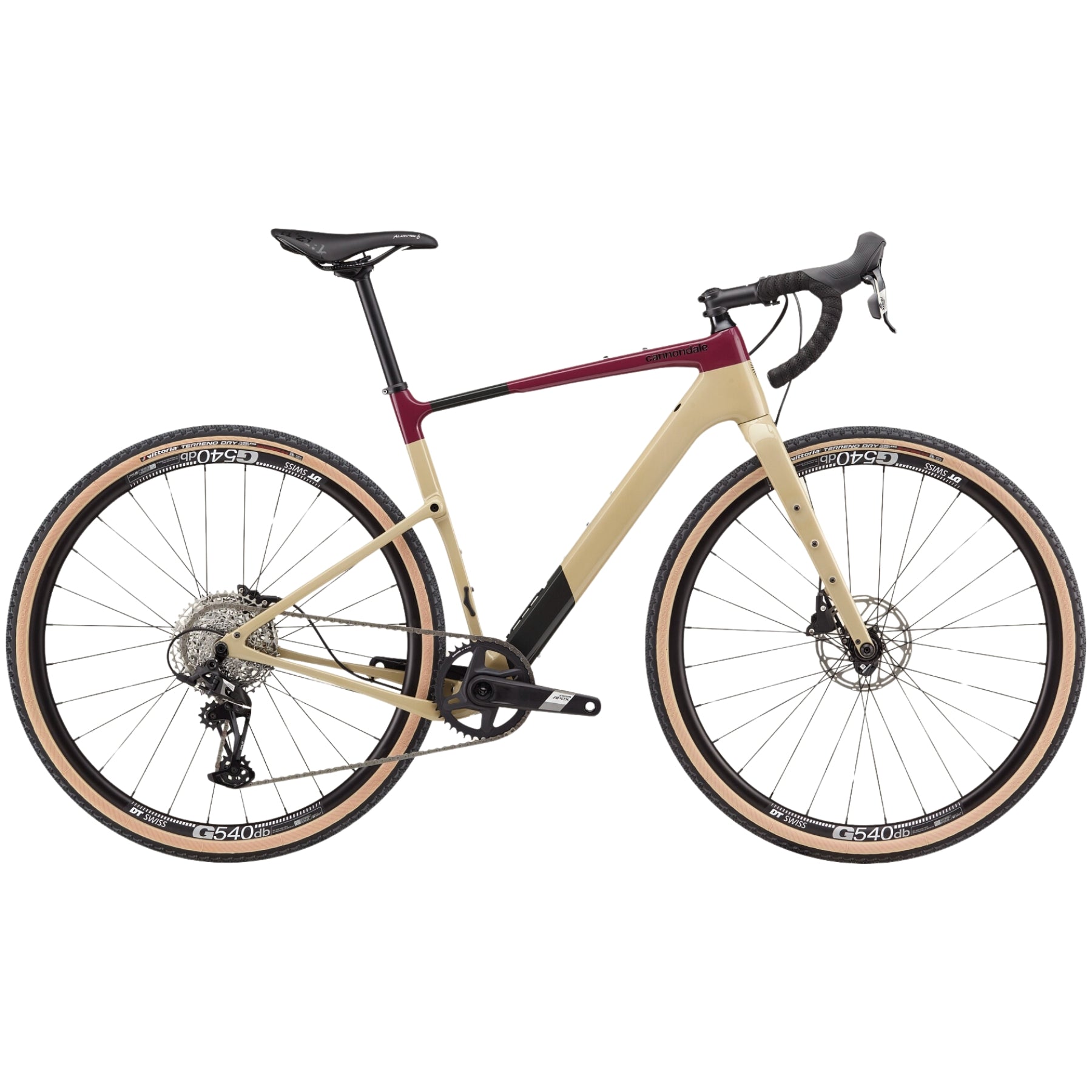

Cannondale Topstone Carbon Apex 1 Gravel Bike

Cannondale Topstone Carbon Apex 1 Gravel Bike: there are no limits

Gravel bike with rear suspension, SRAM Apex XPLR 12-speed drivetrain and DT Swiss G540 wheels.

The ultimate gravel bike for everything from rough roads to trails. With the grip and comfort of Kingpin suspension, there are no limits.

Topstone carbon fiber frame kit with Kingpin suspension / connectivity with integrated Cannondale App / compatible with SmartSense.

SRAM Apex XPLR 12-speed groupset with wide range of gear ratios and Apex hydraulic disc brakes.

Wide and robust DT Swiss G540 rims.

Cannondale Topstone Carbon Apex 1 Specifications

FRAMESET

Frame: Topstone Carbon, Kingpin suspension system, SmartSense compatible, Proportional Response construction, 12x142mm thru-axle, 27.2 dropper post compatible, BSA 68mm threaded BB, DirectLine internal cable routing, removable fender bridge, multiple gear/bottle mounts

Fork: TTopstone Carbon, 1-1/8" to 1.5" steerer, 55mm OutFront offset, flat mount disc, internal routing, 12x100 thru-axle, triple bottle/gear mounts, fender mounts.

Headset: Integrated, 1-1/8" - 1.5"

DRIVETRAIN

Derailleur: SRAM Apex XPLR

Shifters: SRAM Apex, hydraulic disc, 12-speed

Chain: SRAM Apex, 12-speed

Crankset: SRAM Apex 1 Wide Direct Mount, 40T

Cassette: SRAM PG-1231 XPLR, 11-44, 12-speed

Bottom Bracket: SRAM DUB BSA Road 68 Wide

BRAKES

Brakes: SRAM Apex hydraulic disc, 160/160mm Centerline rotors.

Brake Levers: SRAM Apex hydraulic disc

WHEELS

Rims: DT Swiss G540, 28h, 24mm inner width.

Hubs: (F) Formula cartridge bearing, 12x100mm centerlock | (R) Formula cartridge bearing, 12x142mm centerlock.

Tires: Vittoria Terreno Dry, 700x38c, tubeless ready

COMPONENTS

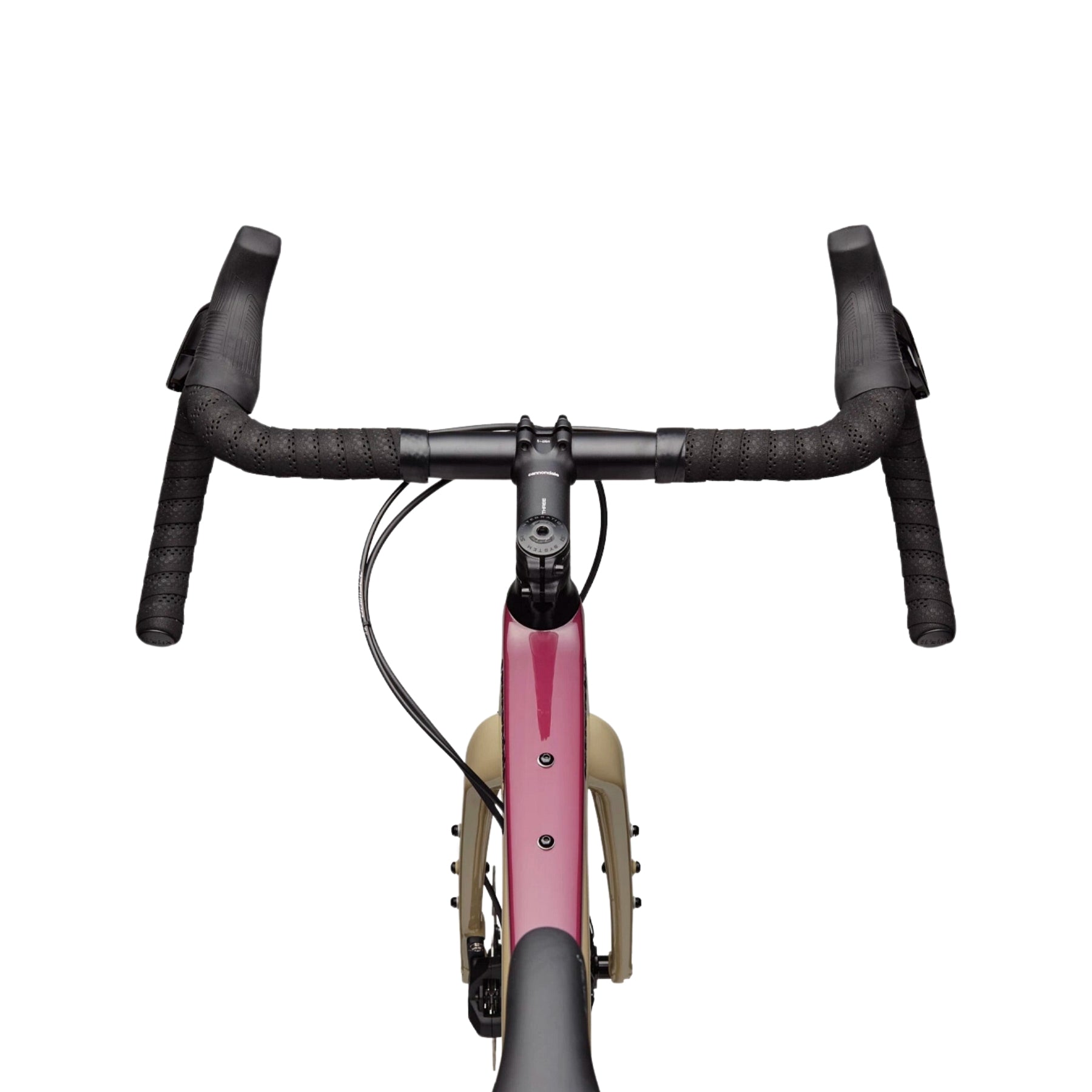

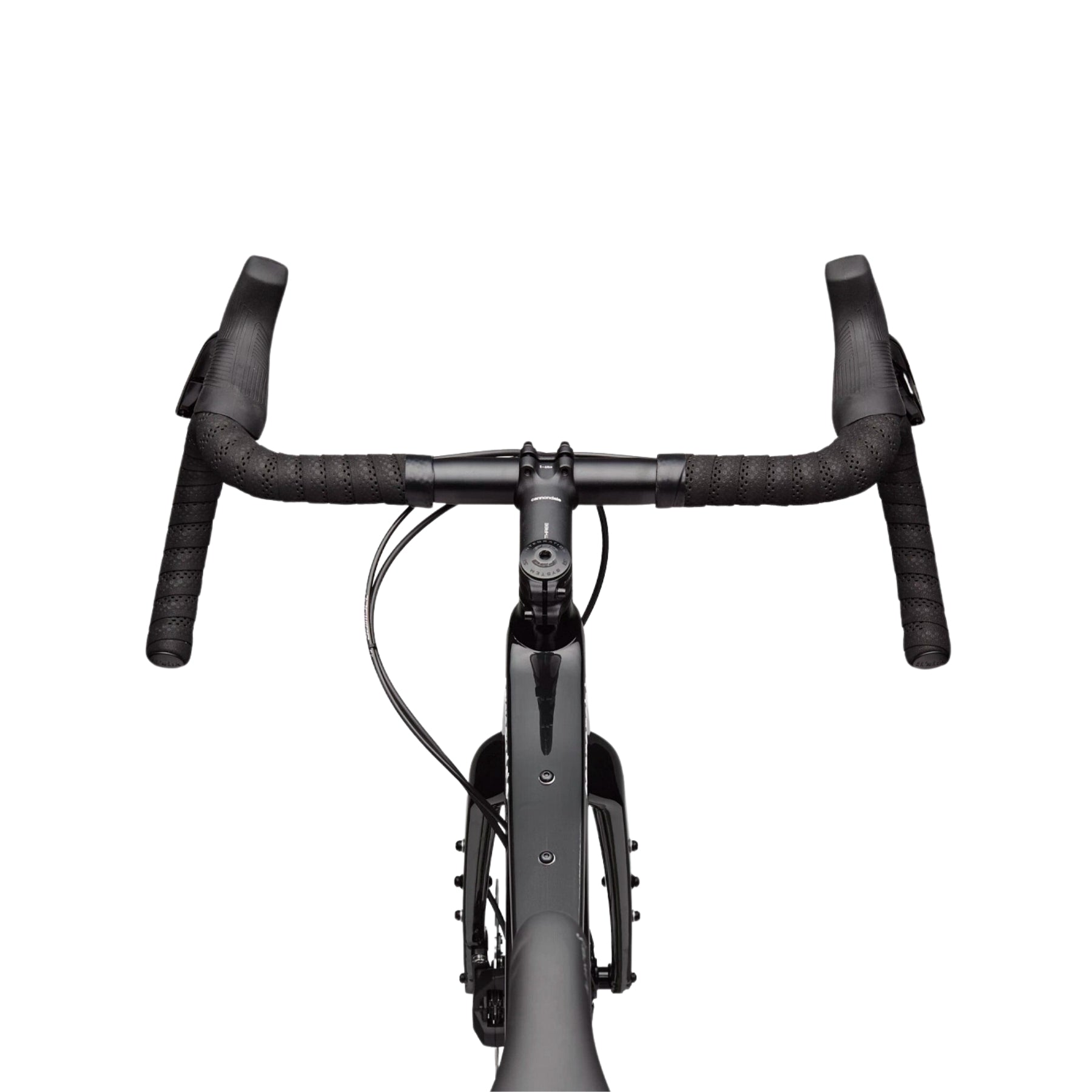

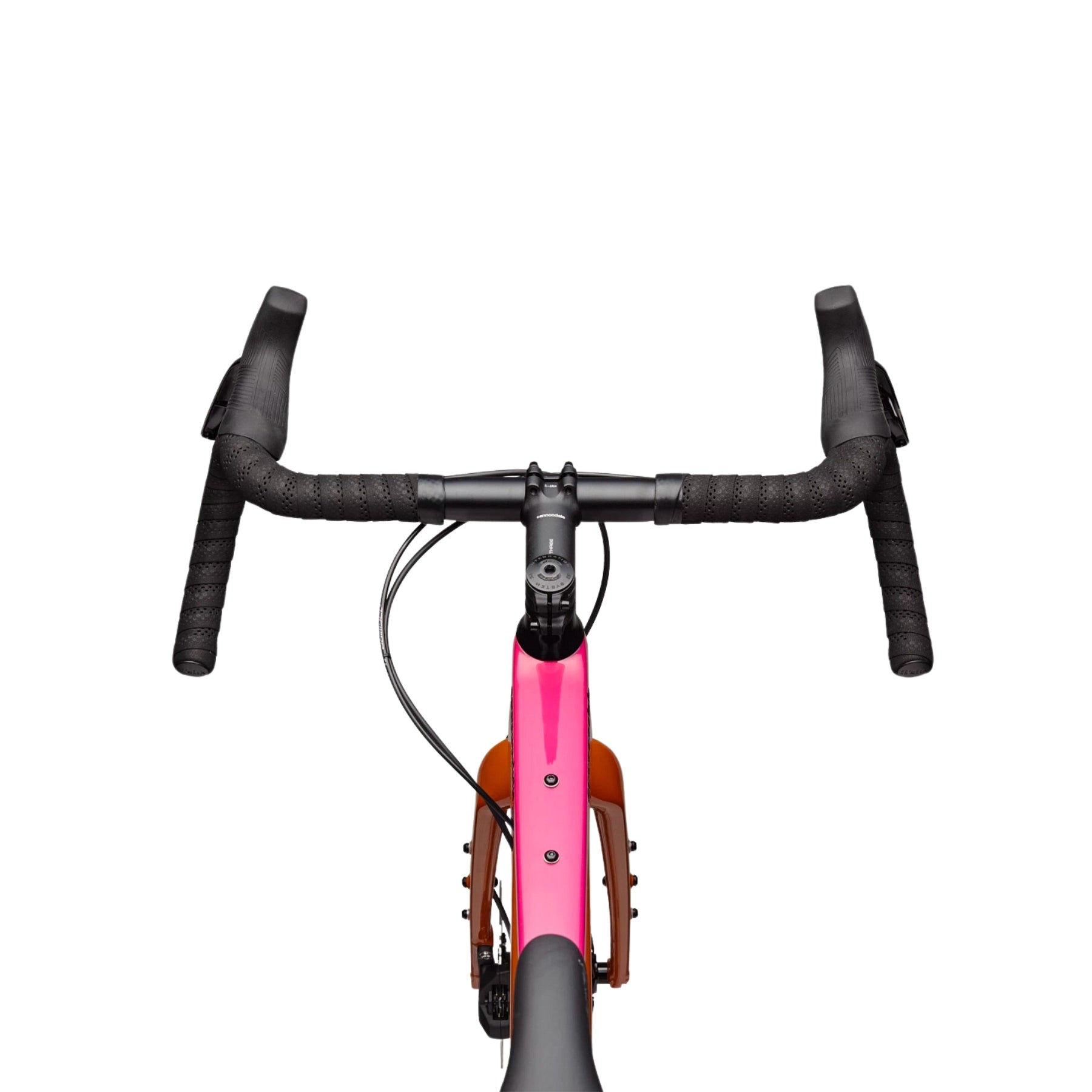

Handlebar: Cannondale 3, butted 6061 Alloy, 16 deg flare drop.

Stem: Cannondale 3, 6061 Alloy, 31.8, 7°.

Puños: Fizik Solocush Soft, 3mm.

Saddle: Fizik Aliante Delta, S-alloy rails

Seatpost: Cannondale 3, 6061 Alloy, 27.2x350mm

*We reserve the right to modify the information and components of the products appearing on this website without prior notice, including equipment, specifications, models, colors and materials.
