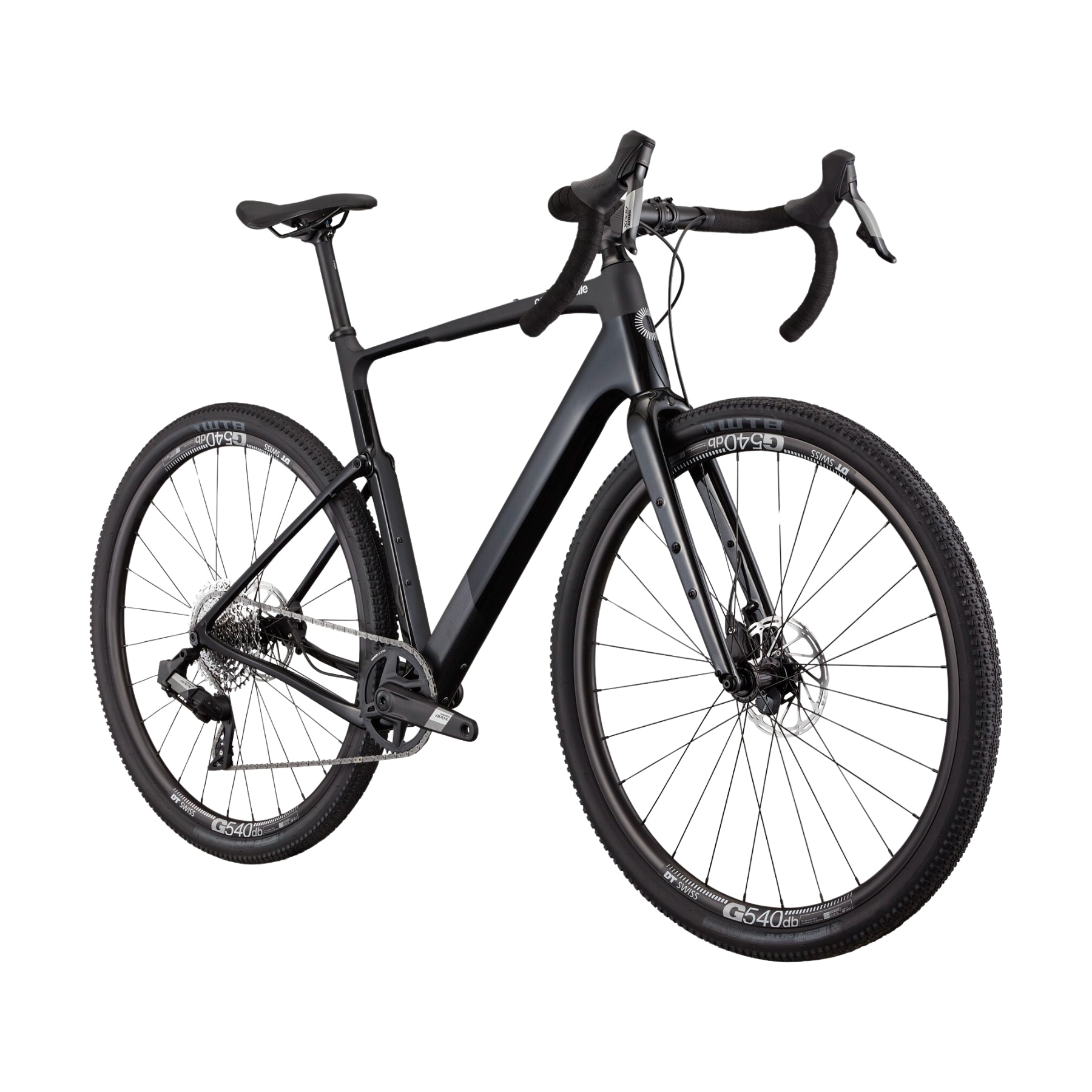

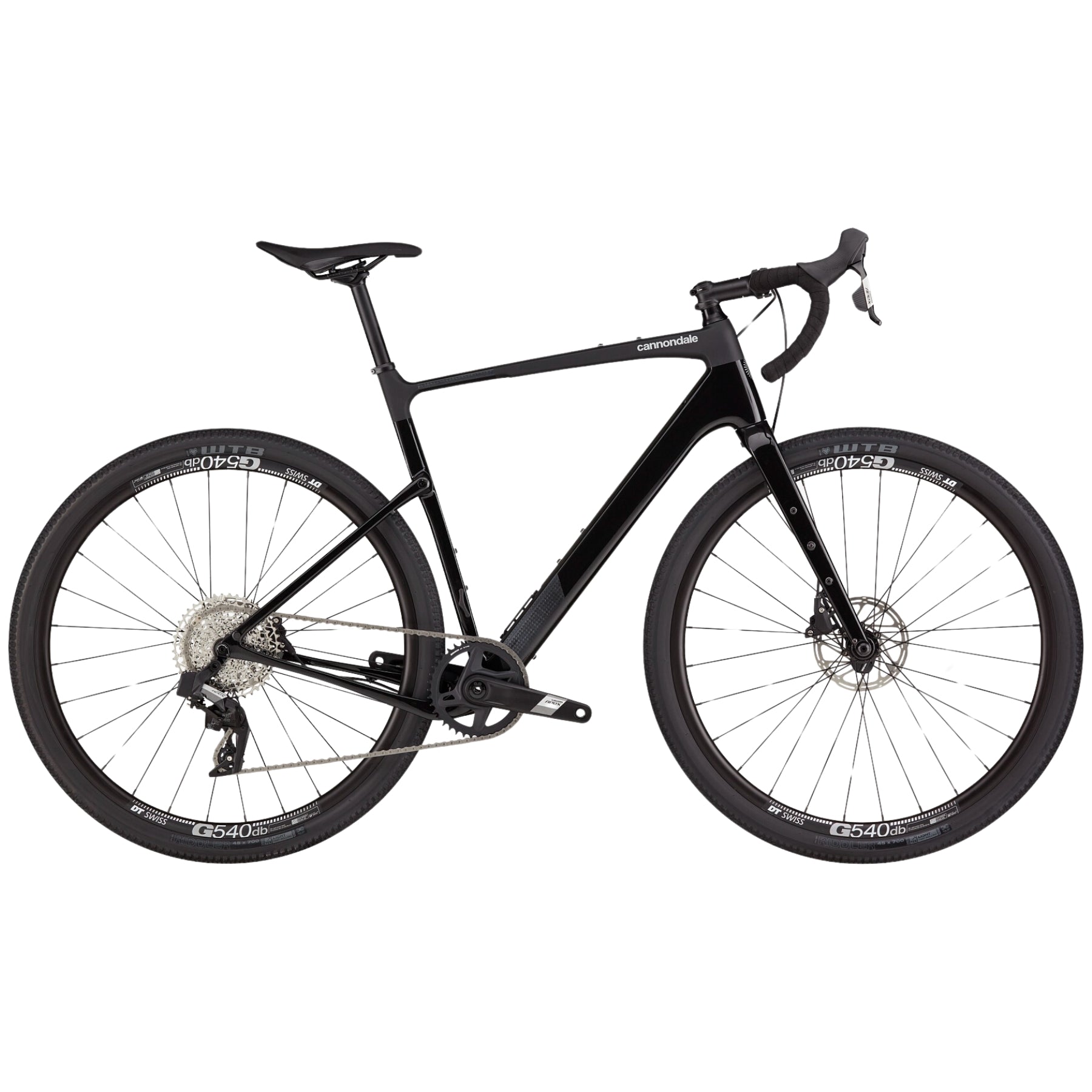

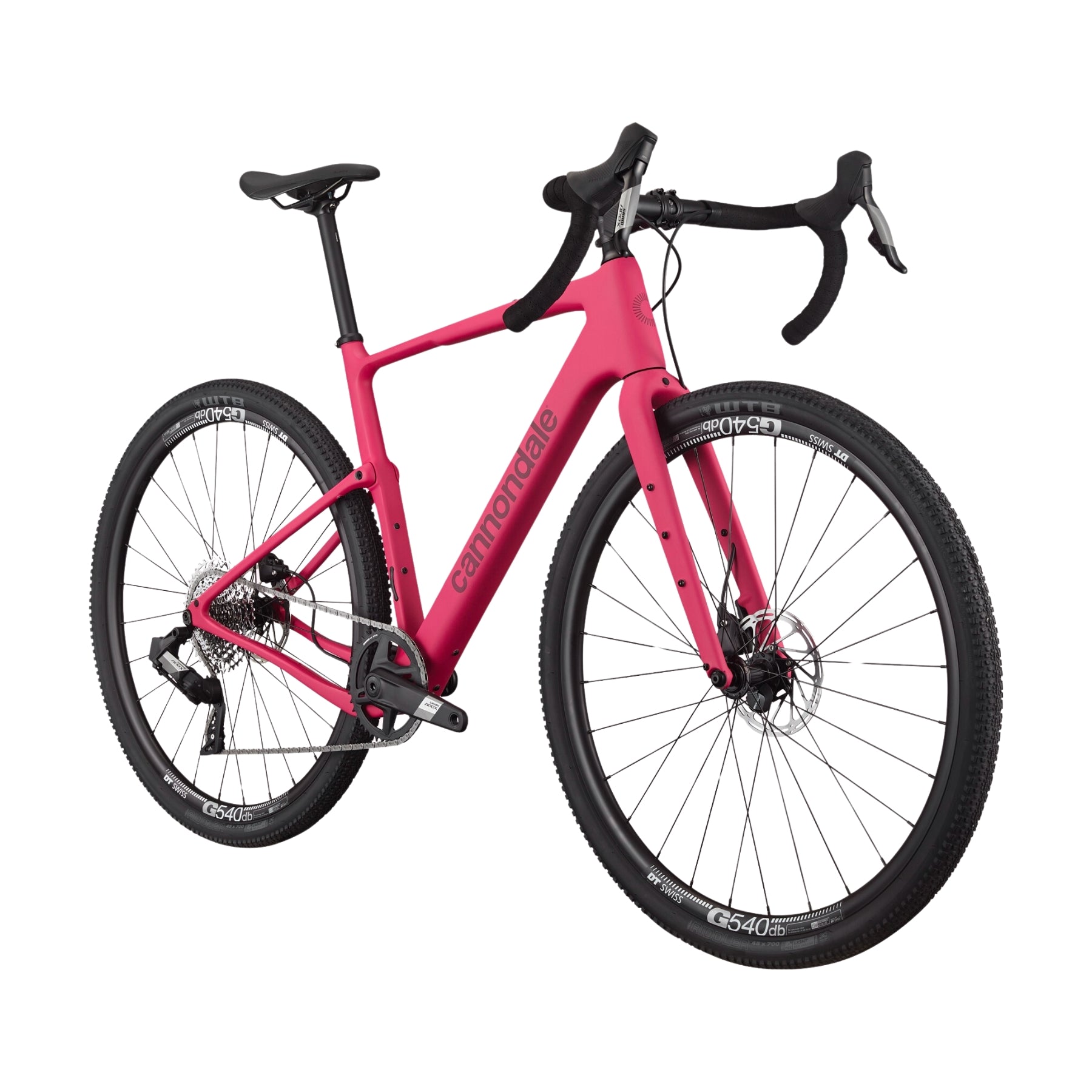

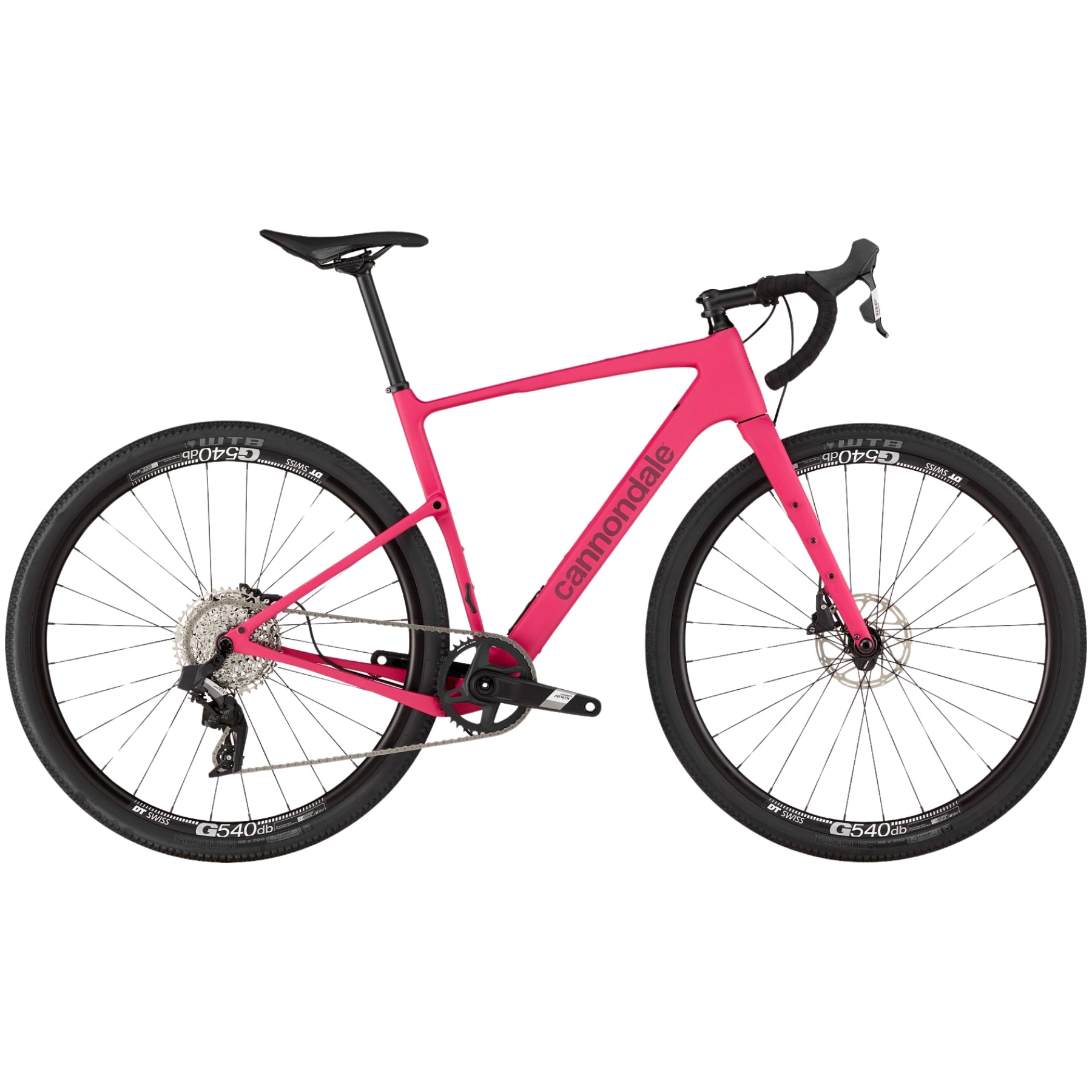

Cannondale Topstone Carbon Apex AXS Gravel Bike

Cannondale Topstone Carbon Apex AXS Gravel Bike: Nothing is insurmountable

Gravel bike with rear suspension, SRAM Apex AXS EXPLR wireless electronic rear derailleur and DT Swiss wheels.

The best gravel bike for everything from dirt roads to singletrack trails. With the grip and comfort of Kingpin suspension, nothing is off limits.

Lightweight Topstone Carbon frame with Kingpin suspension, SmartSense compatibility and integrated Cannondale App connectivity.

SRAM Apex AXS XPLR 12-speed wireless electronic SRAM Apex AXS XPLR shifter and hydraulic disc brakes.

DT Swiss G540 rims / WTB Riddler TCS Light, 700x45c, tubeless ready tires.

Cannondale Topstone Carbon Apex AXS Specificactions

FRAMESET

Frame: Topstone Carbon, Kingpin suspension system, SmartSense compatible, Proportional Response construction, 12x142mm thru-axle, 27.2 dropper post compatible, BSA 68mm threaded BB, DirectLine internal cable routing, removable fender bridge, multiple gear/bottle mounts

Fork: Topstone Carbon, 1-1/8" to 1.5" steerer, 55mm OutFront offset, flat mount disc, internal routing, 12x100 thru-axle, triple bottle/gear mounts, fender mounts.

Headset: Integrated, 1-1/8" - 1.5"

DRIVETRAIN

Derailleur: SRAM Apex AXS XPLR wireless

Shifters: SRAM Apex AXS wireless, hydraulic disc, 12-speed.

Chain: SRAM Apex, 12-speed.

Crankset: SRAM Apex 1 Wide, 40T

Cassette: SRAM PG-1231 XPLR, 11-44, 12-speed

Bottom Bracket: SRAM DUB BSA

BRAKES

Brakes: SRAM Apex hydraulic disc, 160/160mm Centerline rotors.

Brake Levers: SRAM Apex AXS hydraulic disc.

WHEELS

Rims: DT Swiss G540, 28h, 24mm inner width.

Hubs: (F) Formula cartridge bearing, 12x100mm centerlock | (R) Formula cartridge bearing, 12x142mm centerlock.

Tires: WTB Riddler TCS Light, 700x45c, tubeless ready.

COMPONENTS

Handlebar: Cannondale 3, butted 6061 Alloy, 16 deg flare drop.

Stem: Cannondale 3, 6061 Alloy, 31.8, 7°

Grips: Fizik Solocush Soft, 3mm

Saddle: Fizik New Aliante R5, S-alloy rails

Seatpost: Cannondale 3, 6061 Alloy, 27.2x350mm

CONNECTIVITY

Wheel Sensor: Cannondale Wheel Sensor

EXTRA

Extra: StrapRack Tool Carrier, SRAM AXS charger

* We reserve the right to modify the information and components of the products appearing on this website without prior notice, including equipment, specifications, models, colors and materials.
