Cannondale Trail Neo 4 MTB eBike

Cannondale Trail Neo 4: Transform Your Adventure with the Power of the E-Mountain Bike

Ride the Cannondale Trail Neo 4 and challenge the limits of what a mountain bike can do. This e-bike is designed to provide unmatched speed, efficiency and handling on the trails. Equipped with a Bosch Performance Line motor and a long-lasting battery, this e-bike is your ticket to exploring more terrain than ever before.

Highlights

• SmartForm C2 Aluminum Frame: This robust and reliable frame is the heart of a machine designed to perform on any terrain.
• SR Suntour XCM Fork: With 100 mm of travel, this suspension fork is responsible for smoothing out the bumps on the roughest trails.
• Bosch Electric System: With a Bosch Performance Line Cruise motor and a 500Wh battery, you can travel up to 112 km on a single charge.

Cannondale Trail Neo 4 Specifications

FRAMESET

Frame: SmartForm C2 Alloy, removable downtube battery, SAVE, tapered headtube, internal cable routing, 148x12mm thru-axle, post mount disc, folding lock mount, rack/fender mounts, Si kickstand mount.

Fork: SR Suntour XCM, 100mm, Coil, 46mm offset.

Headset: Integrated Sealed Bearing, Tapered

ELECTRIC SYSTEM

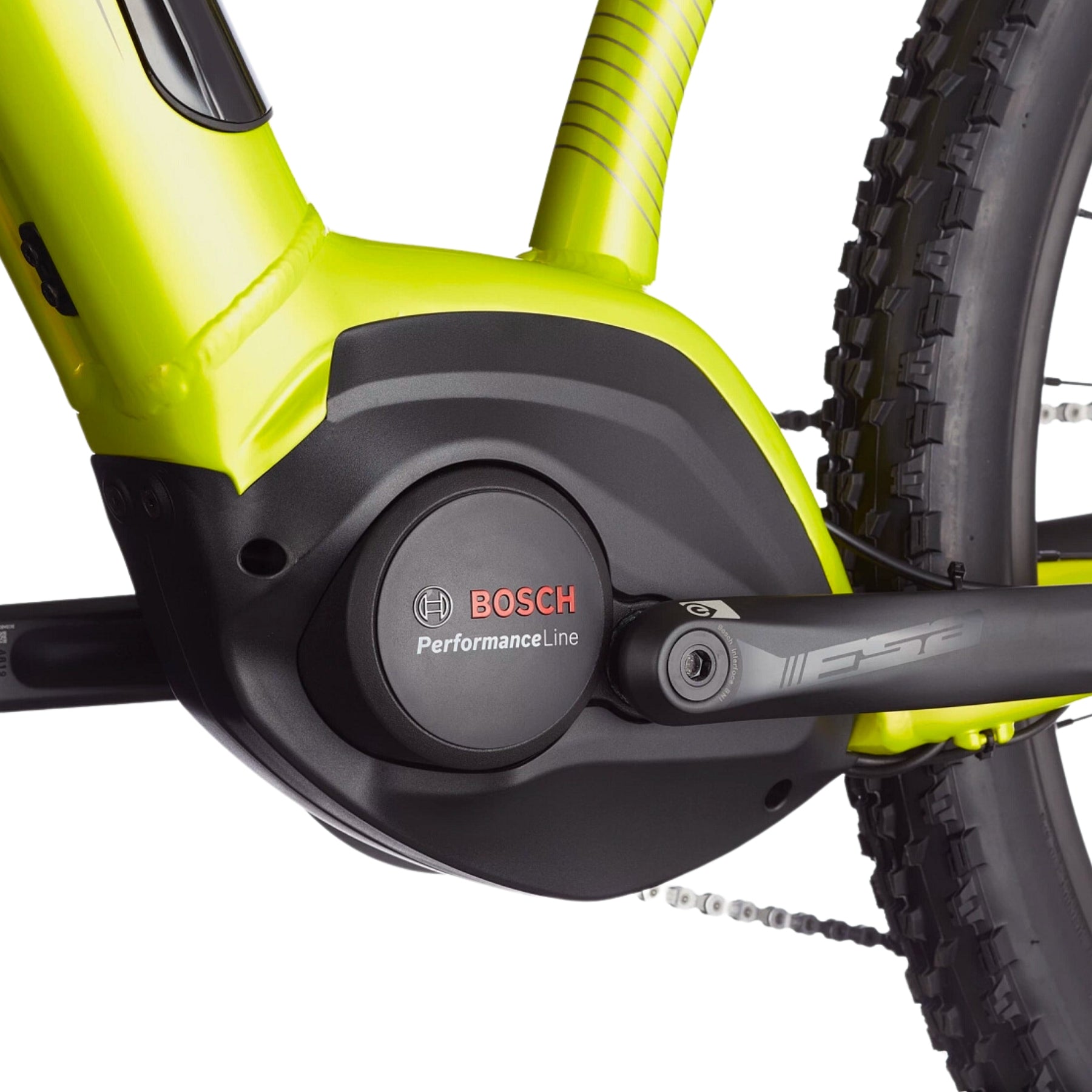

Drive Unit: Bosch Performance Line Cruise

Battery: Bosch PowerTube, 500Wh

Charger: Bosch 2A

Display: Bosch Purion

DRIVETRAIN

Derailleur: Shimano Alivio, 9-speed

Shifters: Shimano Alivio, 9-speed

Chain: Shimano HG-93A, 9-speed

Crankset: FSA Bosch E-Bike, 34T

Cassette: Shimano HG200, 11-36, 9-speed

BRAKES

Brakes: Shimano MT200 hydraulic disc, 180mm RT10 rotors.

Brake Levers: Shimano MT200 hydraulic disc.

WHEELS

Rims: WTB STX i25 TCS, 32h, tubeless ready

Hubs: (F) Shimano HB M4050 | (R) Shimano MT400, 12x148mm thru-axle

Tires: Maxxis Ardent, 29 x 2.4", Wire 60TPI Exo

COMPONENTS

Handlebar: Cannondale 3 Riser, 6061 Alloy, 15mm rise, 8° sweep, 4° rise, 780mm

Stem: Cannondale 3, 6061 Alloy, 31.8, 0°

Grips: Fabric Funguy

Saddle: Cannondale Ergo XC

Seat Post: Cannondale 4, 6061 Alloy, 31.6 x 350mm
