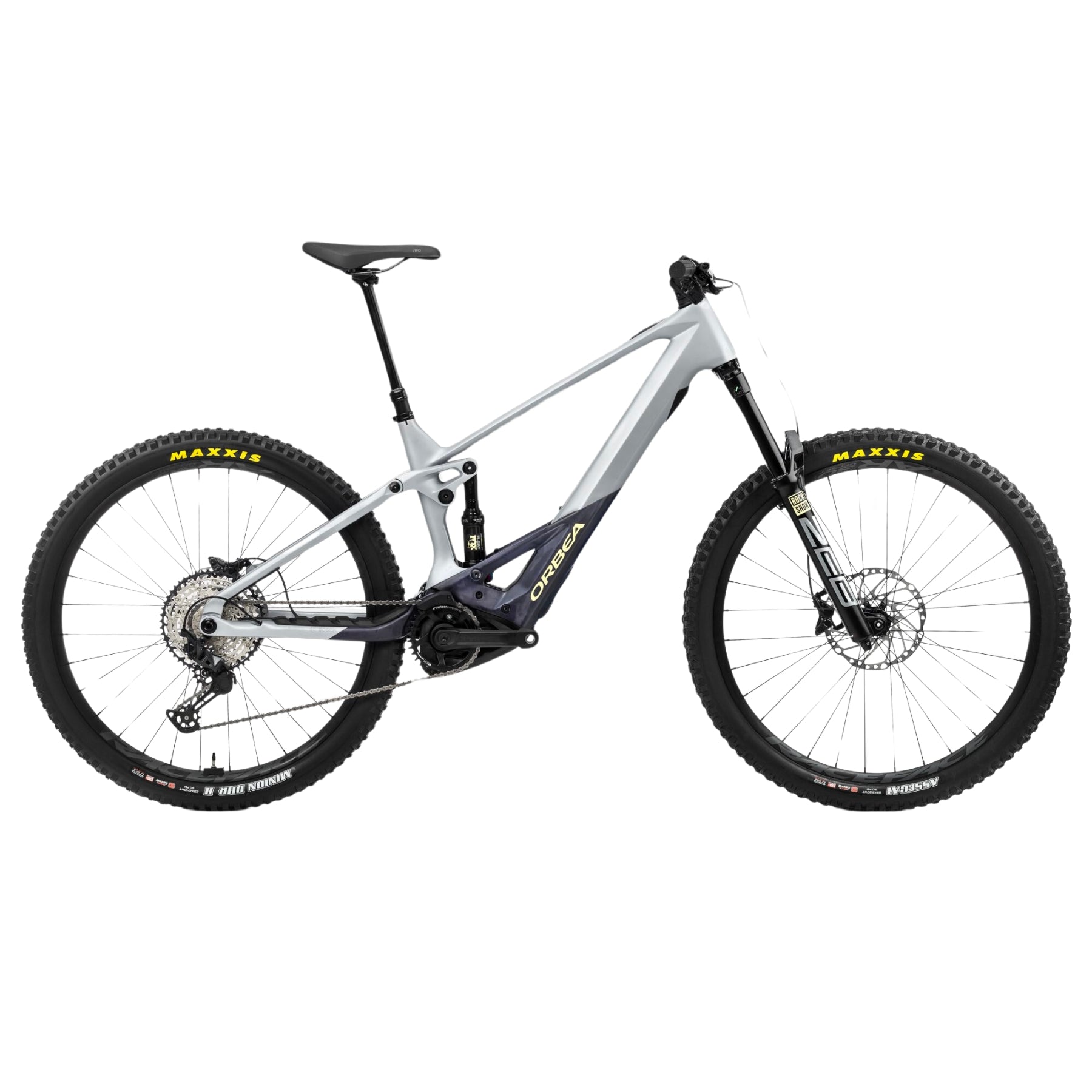

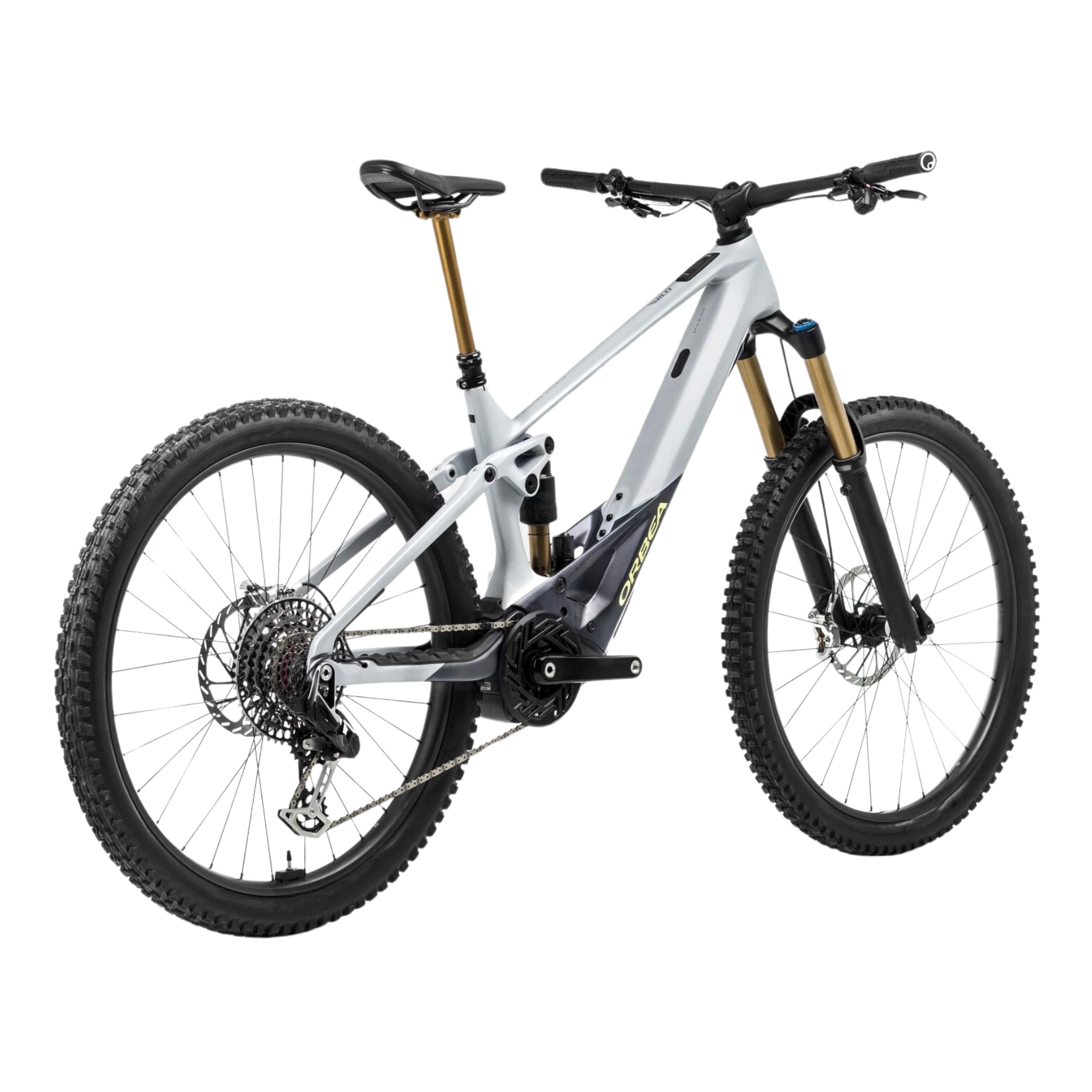

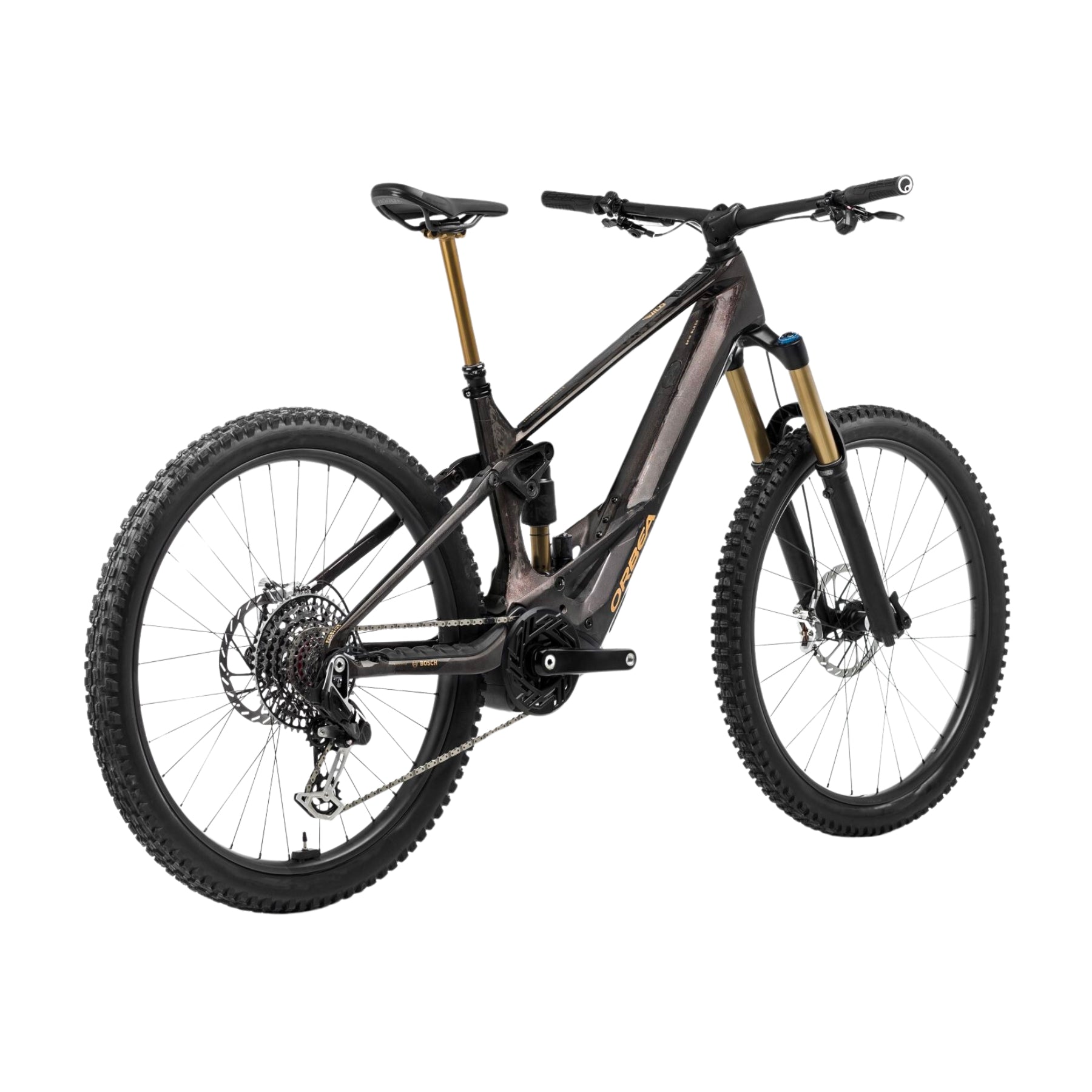

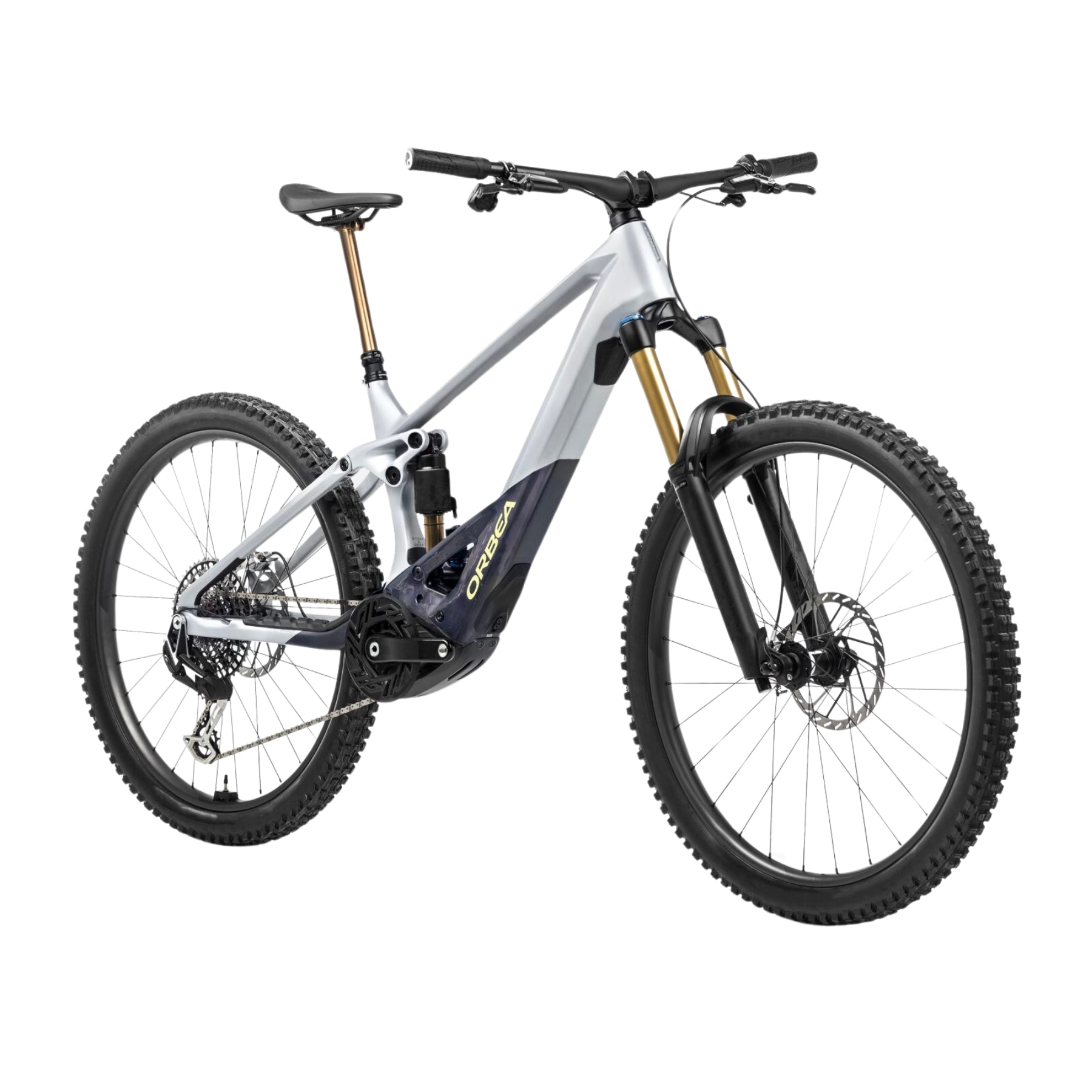

Orbea Wild M20 2024 MTB eBike

Orbea Wild M20: Dominate the Mountain with Style and Power

The Orbea Wild M20 Electric Bike is the perfect companion for adventurers looking to conquer the most challenging trails with style and power. With a carbon frame, this dual suspension is designed to take your mountain biking experience to the next level.

Powerful and Efficient

Equipped with the BOSCH Performance CX Cruise motor and a 750Wh BOSCH Powertube battery, the Wild M20 gives you the power you need to effortlessly climb steep hills and explore challenging terrain. With impressive range, you can venture further and enjoy more time on the mountain.

Advanced Geometry

The Wild M20's carbon frame features a geometry designed for easy handling and capable of tackling the toughest terrain. In addition, its color control screen is compatible with Bluetooth and ANT+ devices, giving you full control of your e-bike.

e-bike Orbea Wild M20 Specifications:

FRAMESET

Frame: Orbea Wild OMR 2023, 160mm travel, 29" wheels, Concentric Boost 12x148.

Fork: RockShox ZEB Base-A2 DebonAir+ 160 E-MTB specific Q15X110 Boost.

Headset: Alloy 1-1/2", Black Oxidated Bearing.

Rear Shock: Fox Float Performance Trunnion 2-Position Evol LV custom tune 205x65mm.

ELECTRIC SYSTEM

Drive Unit: Bosch Performance Line CX BDU3741.

Battery: Bosch Powertube 750Wh Horizontal BBP3770.

Charger: Bosch Charger 4A (230V) BPC3400

Display: Bosch System Controller BCR3100

UI/Remote: Bosch Mini Remote BRC3300.

DRIVETRAIN

Derailleur: Shimano SLX M7100 SGS Shadow Plus.

Shifters: Shimano Deore M6100 I-Spec EV

Chain: Shimano M6100

Crankset: e*thirteen Plus Alloy, e*thirteen e*spec Direct Mount 34T Boost.

Cassette: Shimano CS-M7100 10-51t 12-Speed.

BRAKES

Brakes: Shimano MT420 Hydraulic Disc.

WHEELS

Rims: Race Face AR 30c Tubeless Ready.

Tires: Maxxis Assegai 2.50

COMPONENTS

Handlebar: OC Mountain Control MC30, Rise20, Width 800

Stem: OC Mountain Control MC20, 0º.

Saddle: Selle Royal Vivo Sport Men 145 x 269mm.

Seat Post: OC Mountain Control MC21, 31.6mm, Dropper

* We reserve the right to modify the information and components of the products appearing on this website without prior notice, including equipment, specifications, models, colors and materials.
